  • IPX6 Jet Nozzle of Diameter 12,5 mm

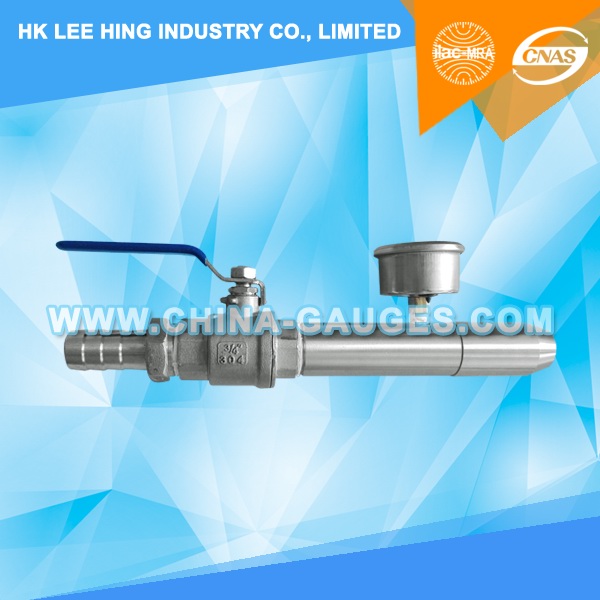

IPX6 Jet Nozzle of Diameter 12,5 mm

IPX6 Jet Nozzle of Diameter 12,5 mm

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-IPX6H
  • Made in China
  • Product description: IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow of 100L/min.

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX6 according to the IEC 60529.



Water supply

Water flow rate >100L/min±5% clean water witho ut inclusion.

The nozzle diameter

12.5 mm

Water flow

100 L/min

Testing time

Not less than 1min/m2 (not less than 3 mins)

The distance from jet nozzle to enclosure


Pressure Gauge

0 - 0.25 MPa

Reference standards


Nozzle Material

Stainless Steel

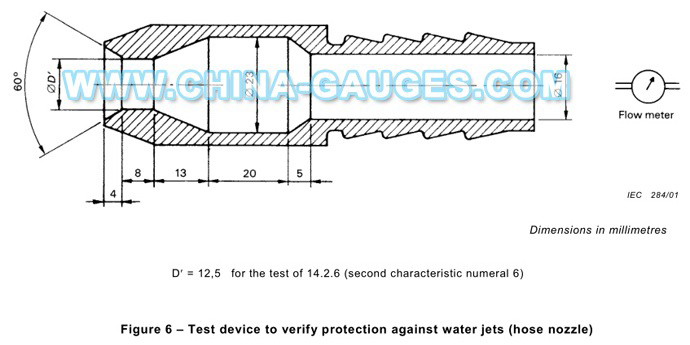

Figure 6 - Test device to verify protection against water jests (hose nozzle)
