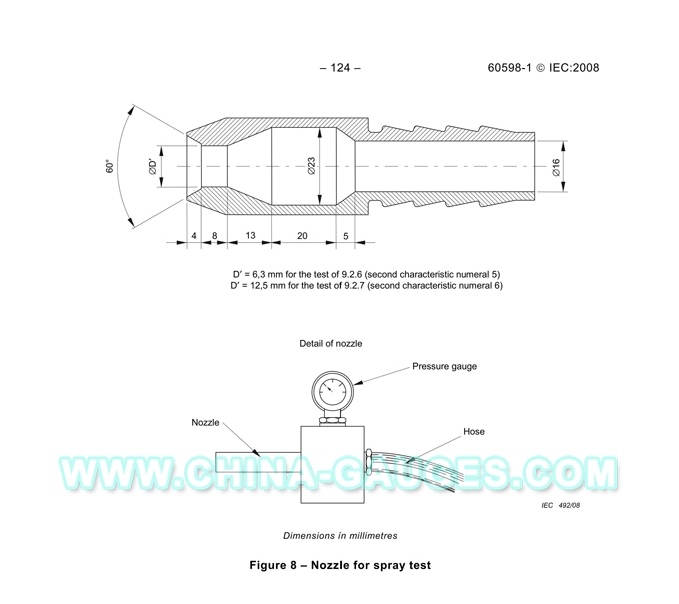

  • IEC 60598-1 Figure 8 Nozzle for Spray Test
IEC 60598-1 Figure 8 Nozzle for Spray Test

IEC 60598-1 Figure 8 Nozzle for Spray Test

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: LX-IPX5X6
  • Made in China

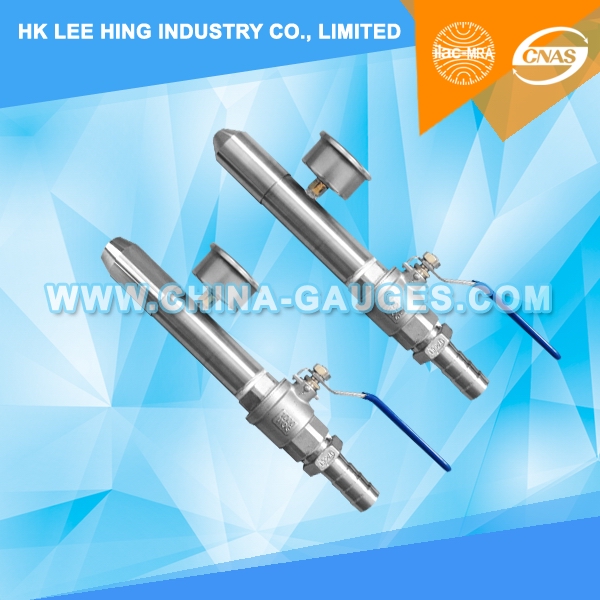

  • Product description: The IPX5 IPX6 Water Jets Nozzle of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are
  • INQUIRY

IEC 60598-1 Figure 8 Nozzle for Spray Test


This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.


Item IPX5 IPX6
The nozzle diameter 6.3 mm 12.5 mm
Testing time Not less than 1min/m2 (not less than 3 mins)
The distance from jet nozzle to enclosure 2.5~3m
Pressure Gauge 0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material Stainless Steel
