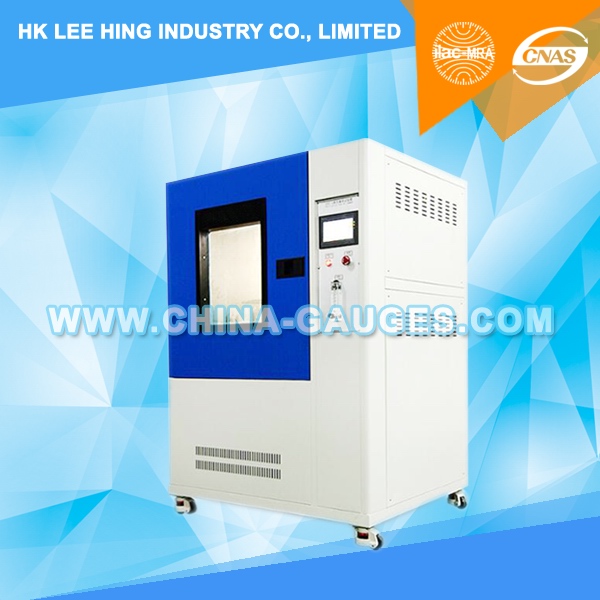

IPX1 IPX2 Rain Spray Test Cabinet

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-IPX12A-600

Test standard:

IPX1 IPX2 Rain Spray Test Cabinet is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX1/2.


IPX1 IPX2 Rain Spray Test Cabinet applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.


1, S304 stainless steel water box and test chamber;

2, Box-type structure, water recycling;

3, Observation window: making use of tempered glass, durable;

4, A drop of rain flow: Frequency adjustable, adjusted manually;

5, Test nozzle: Stainless steel nozzle orifices can be replaced at any time according to requirements of the standard aperture.

6, Filter Action: Device standard filter to prevent clogging of the pinhole; the filter can be replaced periodically;

7, One key to start, automatic shutdown, simple intelligence.

Technical parameters:

Item No.


Inner size of the work room

800*800*1000 mm

Overall size of test chamber

1220*1000*1750 mm

Dripping area

600*600 mm

Put the tube aperture water

0.4 mm of Diameter

Distance between the hole

20*20 mm

Test bench speed

1 r/min

Test bench diameter

600 mm

Test bench up-down adjustment range

350-700 mm

Test bench adjustable tilt range


Testing time

10 min

Test Chamber Voltage


Sample Voltage



1.0 KW
