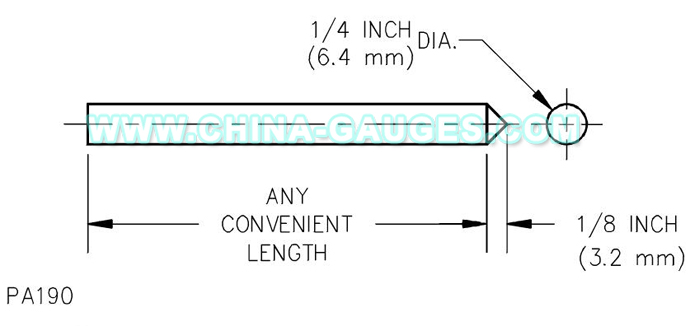

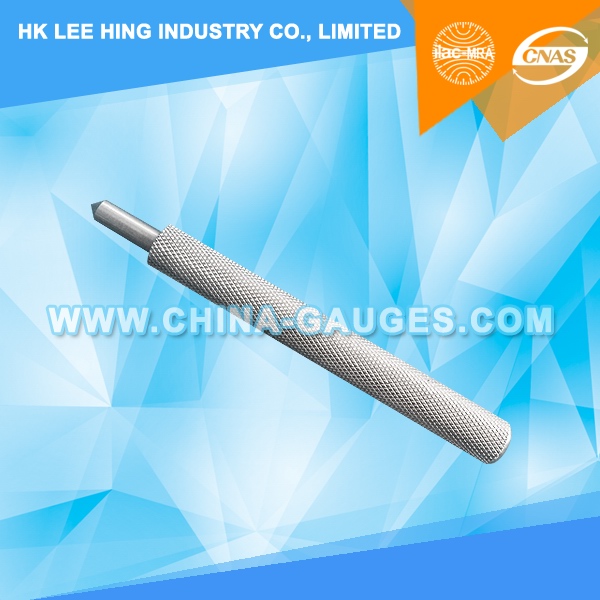

UL982 Figure 58.5 Probe PA190
1) Total length: 50.8 mm (2 INCHES)
2) Head length: 3.2 mm (1/8 INCH)
3) Test Probe Diameter: 6.4 mm (1/4 INCH)
4) Standard: UL982 Figure 58.5
An opening anywhere in the enclosure of a hand-supported appliance or in any portion of an
appliance hand held in normal use is acceptable if a probe as illustrated in Figure 58.5, when inserted point first as far as possible into the opening.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
