  • UL 499 Figure 7.4 Probe for Hand-supported Enclosure PA180

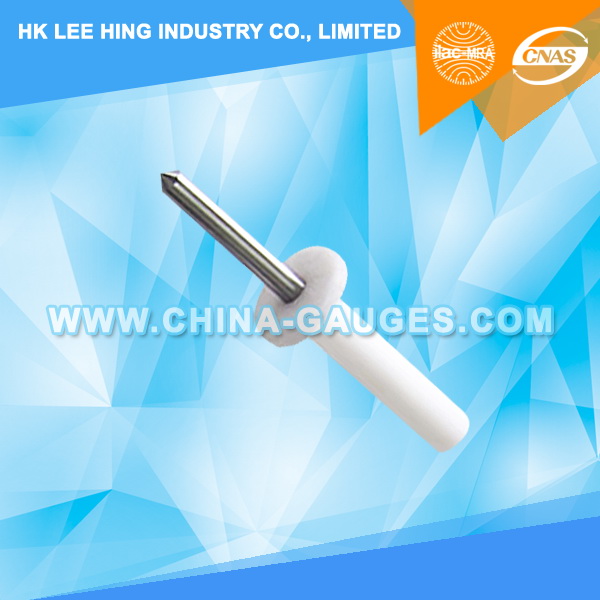

UL 499 Figure 7.4 Probe for Hand-supported Enclosure PA180

UL 499 Figure 7.4 Probe for Hand-supported Enclosure PA180

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-PA180
  • Made in China
  • Product description: UL 499 Figure 7.4 Probe for Hand-supported Enclosure PA180 According to standard UL 499 Figure 7.4
  • INQUIRY

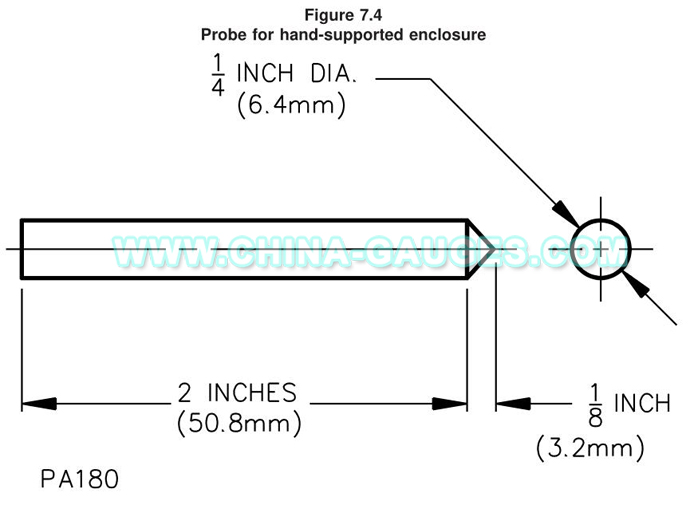

Parameter:
1) Total length: 50.8 mm (2 INCHES)
2) Head length: 3.2 mm (1/8 INCH)
3) Test Probe Diameter: 6.4 mm (1/4 INCH)
4) Standard: UL499 Figure 7.4.

Application:
a) Anywhere in the enclosure of a hand-supported product; or
b) In any portion of a product hand-held during use if a probe, when inserted point first a maximum distance of 2 inches (50.8 mm) into the opening touches any uninsulated live part or touches any enamel-insulated wire.
