  • IP20C Test Probe with 50N Force of IEC 60529
  • IP20C Test Probe with 50N Force of IEC 60529
IP20C Test Probe with 50N Force of IEC 60529IP20C Test Probe with 50N Force of IEC 60529

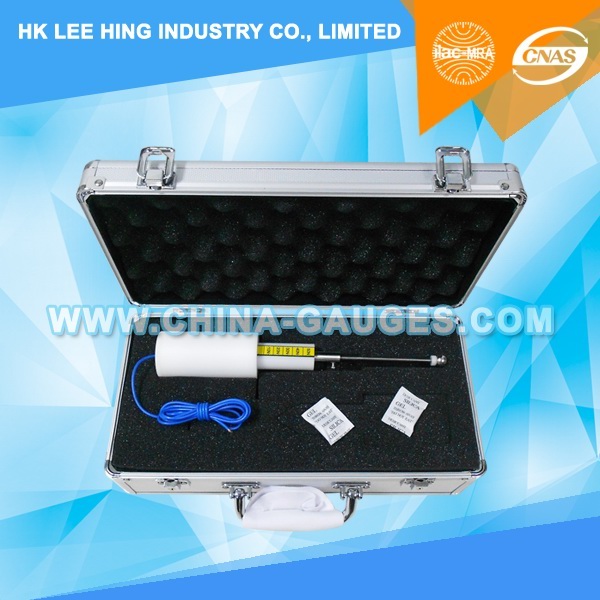

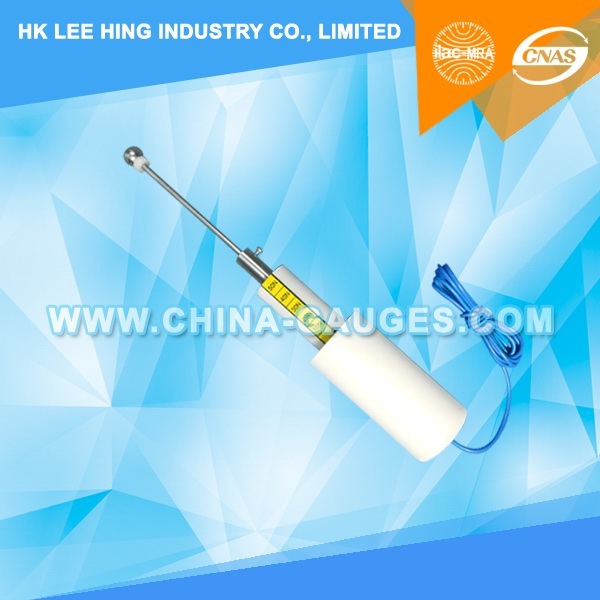

IP20C Test Probe with 50N Force of IEC 60529

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-IP2CT
  • Made in China
  • Product description: The rigid sphere (12.5 mm) is designed and manufactured to perform the test specified in many standards (IEC 60335, IEC 60065, IEC 60745, IEC 61029, IEC 60950) to prove the degree of protection for t
  • INQUIRY

Basic Introduction:
1, According to the DIN40050 IEC60529.
2, 12.5MM test probe is necessary appliance for household and similar electrical appliance of against electric shock protection test.


Technical parameters:
1, Ball Diameter: 12.5 mm
2, Baffle Plate Diameter: 4 mm
3, Baffle Plate Thickness: 10 mm
4, Handle Diameter: 4mm
5, Thrust level: 10N/20N/30N/40N/50N



Application:
1, The ball cannot touch the live parts or approach to hazardous parts.
2, In the test requirements of preventing from accessing to the hazardous parts,the test steel ball without thrust needs to be used with pushing tension meter,and steel body needs to exert a 30±3N force on the protection layer.
