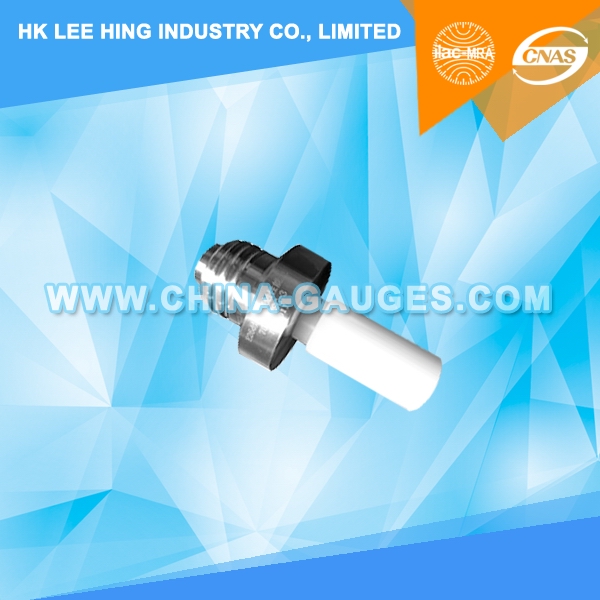

E26d Gauge for Testing Contact-Making in Lampholders 7006-29G-3

E26d Gauge for Testing Contact-Making in Lampholders 7006-29G-3

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: 7006-29G-3
  • Made in China
  • Product description: E26d Gauge for Testing Contact-Making in Lampholders 7006-29G-3. According to standard IEC 60061-3.
  • INQUIRY

E26d Gauge for Testing Contact-Making in Lampholders 7006-29G-3

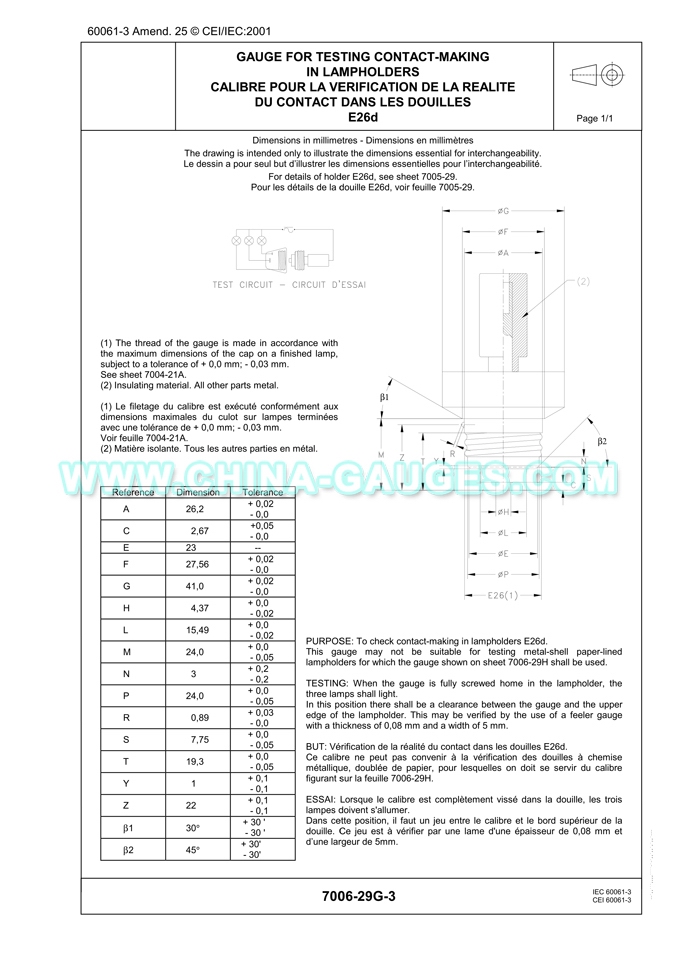

(1) The thread of the gauge is made in accordance with the maximum dimensions of the cap on a finished lamp, subject to a tolerance of + 0,0 mm; - 0,03 mm.
See sheet 7004-21A.
(2) Insulating material. All other parts metal.

PURPOSE: To check contact-making in lampholders E26d.
This gauge may not be suitable for testing metal-shell paper-lined lampholders for which the gauge shown on sheet 7006-29H shall be used.

TESTING: When the gauge is fully screwed home in the lampholder, the three lamps shall light.
In this position there shall be a clearance between the gauge and the upper edge of the lampholder. This may be verified by the use of a feeler gauge with a thickness of 0,08 mm and a width of 5 mm.
