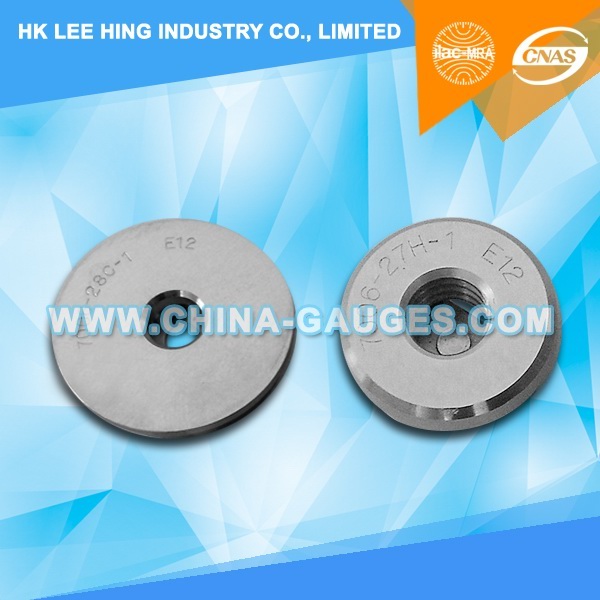

E12 Go Not Go Gauge of Finished Lamp Caps Include:
1) IEC60061-3 7006-27H-1 E12 Go Gauge for Caps on Finished Lamps;
To check the maximum dimensions of the screw thread and dimension T1 minimum of E12 caps on finished lamps.
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X. When the lamp is being removed from the gauge, at least two full turns shall be required to disengage the threads.
This gauge shall be used only in conjunction with the gauge specified on sheet 7006-27J.
2) IEC60061-3 7006-28C-1 E12 Not Go Gauge for Caps on Finished Lamps;
To check the minimum outside (major) diameter of the screw thread, dimension d, of E12 caps on finished lamps.
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
