  • B22 Go Not Go Gauge of Finished Lamp Caps
B22 Go Not Go Gauge of Finished Lamp Caps

B22 Go Not Go Gauge of Finished Lamp Caps

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-B22GN
  • Made in China
  • Product description: B22 Lamp Cap Gauge According to IEC60061.
  • INQUIRY

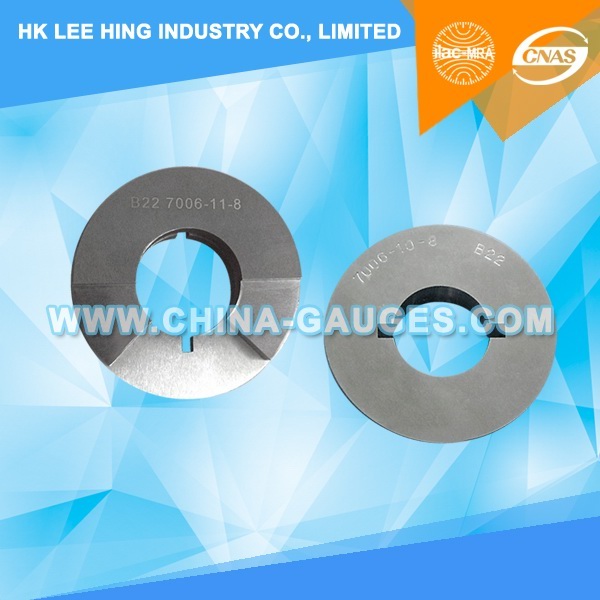

B22 Go Not Go Gauge of Finished Lamp Caps Include:


1) IEC60061-3 7006-11-8 B22 Go Gauges for Caps on Finished Lamps;

Purpose:
To check dimensions A max., N min. D1 min., D1 max., and the diametrical position of the pins of caps B22 on finished lamps.

Testing:
The cap shall enter the gauge until the pins have passed through the slot Q. The cap is then turned through a small angle and is pressed so that the pins are in close contact with surface S.
In this position, the contact making surface shall not be below surface X nor shall it project beyond surface Z.


2) IEC60061-3 7006-10-8 B22 Not Go Gauges for Caps on Finished Lamps;

Purpose:
To check dimension A in, of caps B22 on finished lamps.


Testing:
Caps on finished lamps shall be assumed to be correct if the gauge does not pass over the cap by its own weight.
