  • E12 Gauge for Finished Lamps Fitted with Caps for Testing Contact-making 7006-32-1

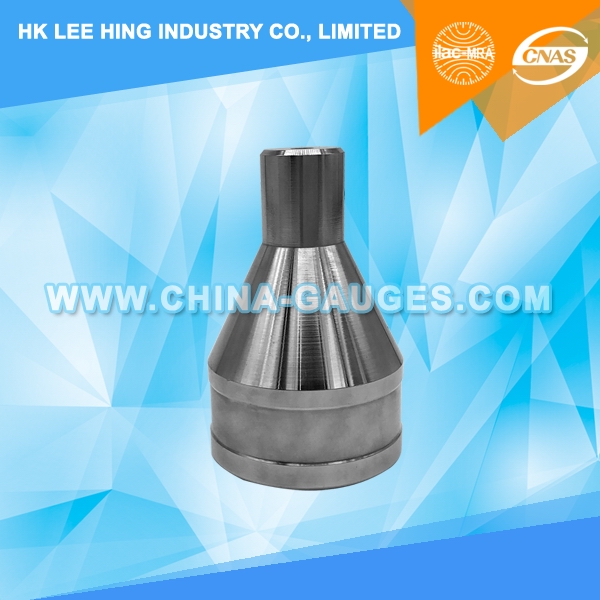

E12 Gauge for Finished Lamps Fitted with Caps for Testing Contact-making 7006-32-1

E12 Gauge for Finished Lamps Fitted with Caps for Testing Contact-making 7006-32-1

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: 7006-32-1
  • Made in China
  • Product description: E12 Gauge for Finished Lamps Fitted with Caps for Testing Contact-making 7006-32-1 According to standard IEC 60061-3.
  • INQUIRY

E12 Gauge for Finished Lamps Fitted with Caps for Testing Contact-making 7006-32-1

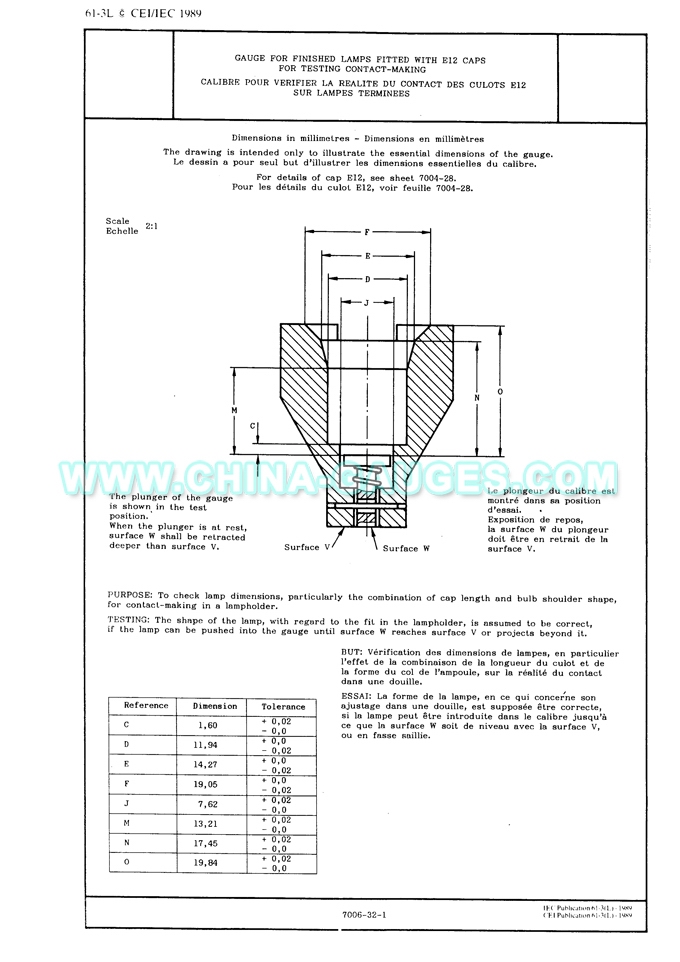

PURPOSE: To check lamp dimensions, particularly the combination of cap length and bulb shoulder shape, for contact-making in a lampholder.

TESTING: The shape of the lamp, with regard to the fit in the lampholder, is assumed to be correct, if the lamp can be pushed into the gauge until surface W reaches surface V or projects beyond it.
