  • E10 Not Go Gauge for Caps 7006-28E-1
E10 Not Go Gauge for Caps 7006-28E-1

E10 Not Go Gauge for Caps 7006-28E-1

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: 7006-28E-1
  • Made in China

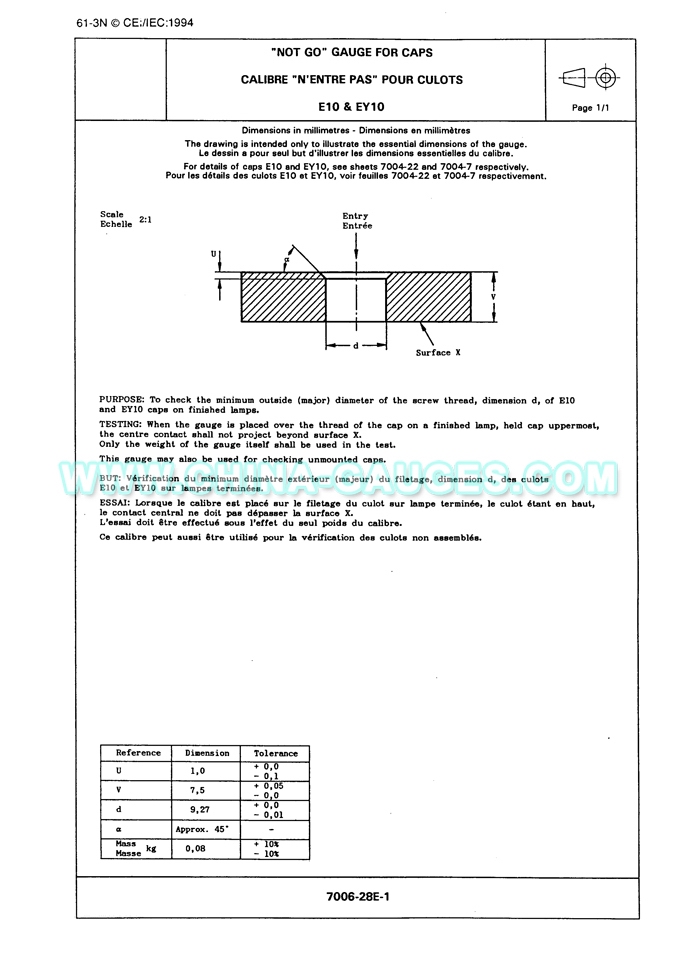

  • Product description: E10 Not Go Gauge for Caps 7006-28E-1 According to standard IEC 60061-3.
  • INQUIRY

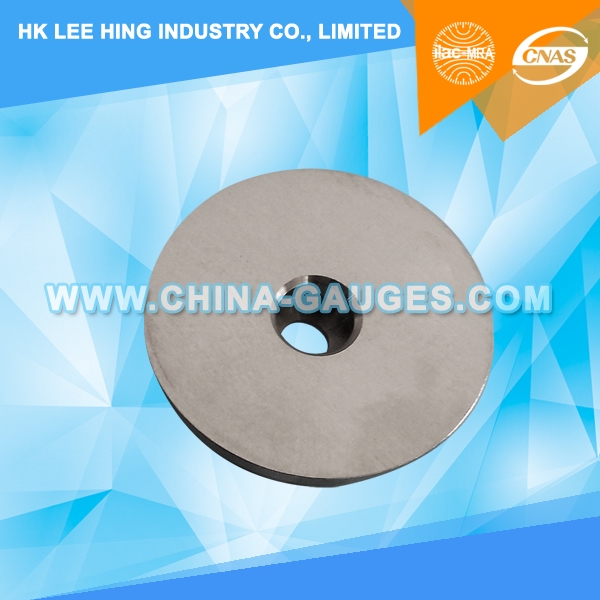

E10 Not Go Gauge for Caps 7006-28E-1


PURPOSE: To check the minimum outside (major) diameter of the screw thread, dimension d, of E10 and EY10 caps on finished lamps.

TESTING: when the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.

Only the weight of the gauge itself shall be used in the test.

This gauge may also be used for checking unmounted caps.
