  • E26d Go Plug Gauge for Lampholders 7006-29K-1

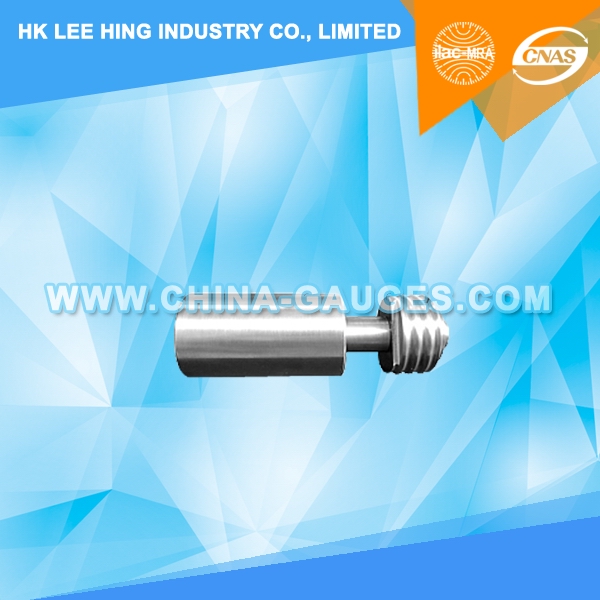

E26d Go Plug Gauge for Lampholders 7006-29K-1

E26d Go Plug Gauge for Lampholders 7006-29K-1

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: 7006-29K-1
  • Made in China
  • Product description: E26d Go Plug Gauge for Lampholders 7006-29K-1 According to standard IEC 60061-3.
  • INQUIRY

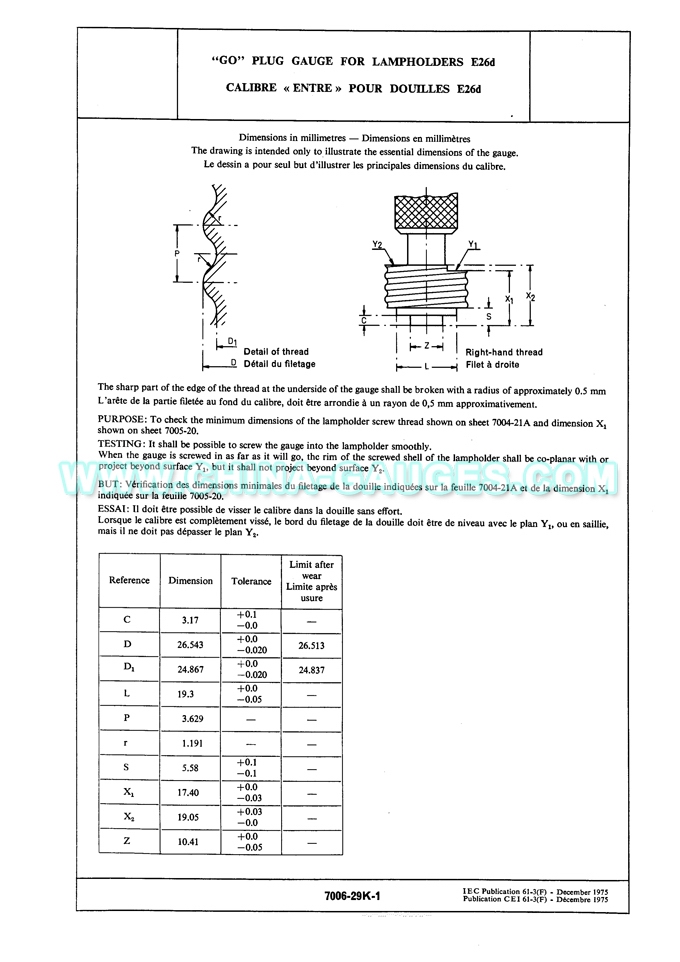

E26d Go Plug Gauge for Lampholders 7006-29K-1


The sharp part of the edge of the thread at the underside of the gauge shall be broken with a radius of approximately 0.5 mm.

PURPOSE: To check the minimum dimensions of the lampholder screw thread shown on sheet 7004-21A and dimension X1 shown on sheet 7005-20.

TESTING: It shall be possible to screw the gauge into the lampholder smoothly.

When the gauge is screwed in as far as it will go, the rim of the screwed shell of the lampholder shall be co-planar with or project beyond surface Y1, but it shall not project beyond surface Y2.
