Home > Test Probe,Test Finger,Test Pins

  • UL 60950-1 Figure 2B Test Pin S2962D

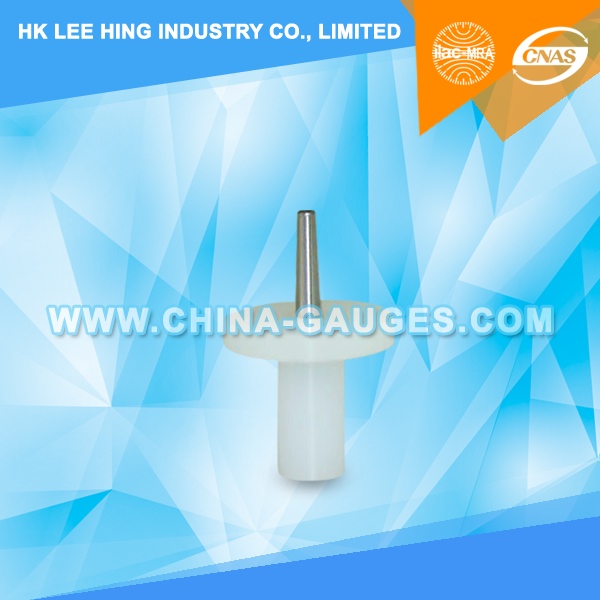

UL 60950-1 Figure 2B Test Pin S2962D

UL 60950-1 Figure 2B Test Pin S2962D

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-1213
  • Made in China
  • Product description: This pin probe is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC61032).
  • INQUIRY

Meets UL 60950-1


This UL 60950-1 Figure 2B Test Pin S2962D is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).


Conforms to:

Standard UL 60950-1 etc.

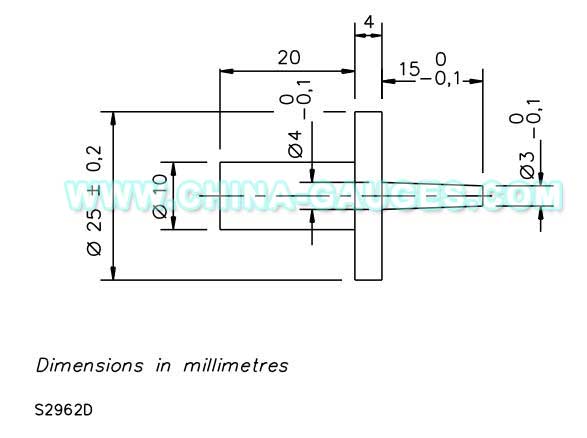

Technical Parameter:

Test probe diameter: 3 mm

Test probe length: 15 mm

Baffle plate thickness: 4 mm

Baffle plate diameter: 25 mm

Handle length: 20 mm

Handle diameter: 10 mm
