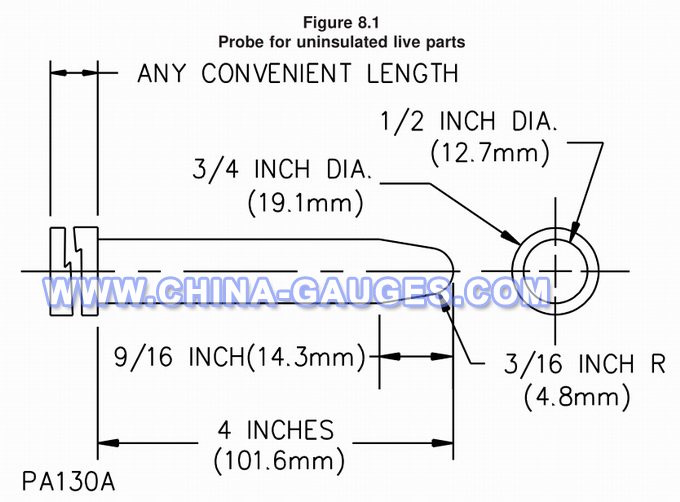

PA130A Uninsulated Live Parts Probe of UL1278 Fig 8.1

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-PA130A

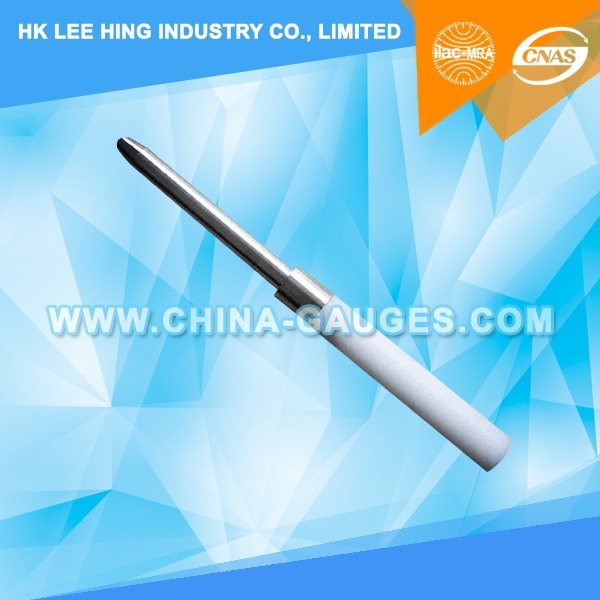

UL Rigid test finger PA130A meets the standard requirements of UL982 & UL 1278, used for simulating fingers and appliances. It is mainly used for checking whether the live parts are touched. Mainly used for testing the no insulation live parts.

Basic Introduction:
1, According to UL1278/UL982;
2, Applicable to the apparatus structure and shell easy access to live parts of protective performance check;
3, The probe cannot be made to touch any noninsulated live part or moving part capable of causing injury when inserted through the opening;

Technical parameters:
1, Straight Finger Diameter:12.7mm(1/2 inch)
2, Straight Finger Total Length:101.6mm(4 inch)
3, The Head Length:14.3mm(9/16 inch)
4, The Head Radius: R 4.8MM(3/16 inch)
5, The Tail Diameter:19.1mm(3/4 inch)
6, According to UL982(PA130A)/UL1278(PA130A)
