  • ISO 8124-1 Stainless Steel Toys Sharp Point Tester for Children Products

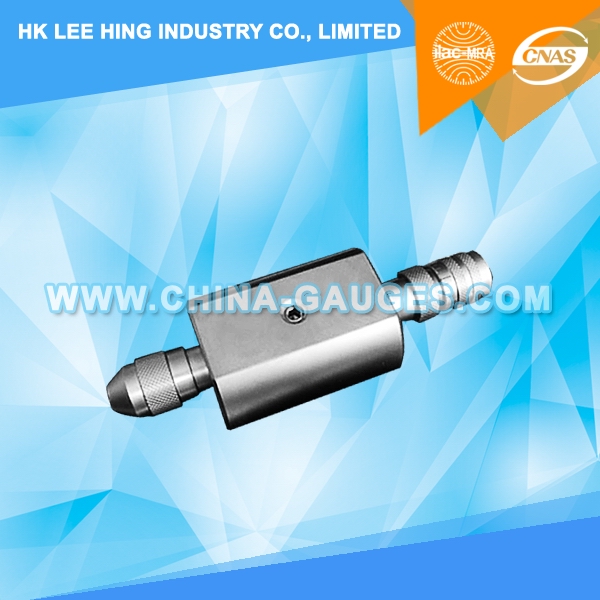

ISO 8124-1 Stainless Steel Toys Sharp Point Tester for Children Products

ISO 8124-1 Stainless Steel Toys Sharp Point Tester for Children Products

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: LX-ST08
  • Made in China
  • Product description: ISO 8124-1 Stainless Steel Toys Sharp Point Tester for Children Products
  • INQUIRY

ISO 8124-1 EN71-1 ASTM Stainless Steel Toys Sharp Point Tester for Children Products


To determine whether accessible sharp points on toys are likely to cause injury. If the accessible sharp point penetrates a specified depth into the small rectangular opening of the tester, the LED is illuminated to indicate that the point is unacceptably sharp. Toys intended for use by children under 8 years old are subject to this requirement before or after use & abuse testing.



Accessories: weight, batteries, bulb 2 pieces


Instructions:
1. Place the sharp point tester on the accessible point and check whether the tested point can be inserted into the sharp tester to the specified depth. The pointed point of the test is inserted into the measuring slot, and an external force of 1 pound is applied to make the indicator light on. This pointed point is judged as a sharp pointed point.
2. Wooden thorns in wooden toys are dangerous sharp points, so they must not be present on toys.
3. Before each inspection, the sensor head must be adjusted according to the regulations to ensure accurate and sensitive sensing.
4. When adjusting the sharp point tester, first loosen the locking ring, and then rotate the locking ring to move it forward enough to the indicator device to expose the calibration reference scale on the circle. Turn the measurement cover clockwise until the indicator light flashes. Rotate the measuring cap counterclockwise until the appropriate micrometer mark is consistent with the calibration scale, and then turn the locking ring until the locking ring is against the measuring cap to fix the test cap in place.


Testing Standards:

16 CFR 1500.48, ASTM F963 4.8, EN-71 1998 8.14, ISO 8124

 POWER 1.5AA batteries x 1 (for 2000 times test)
 WEIGHT 1.5KG
 DEMENSIONS 150*100*60 MM (L*W*H)
