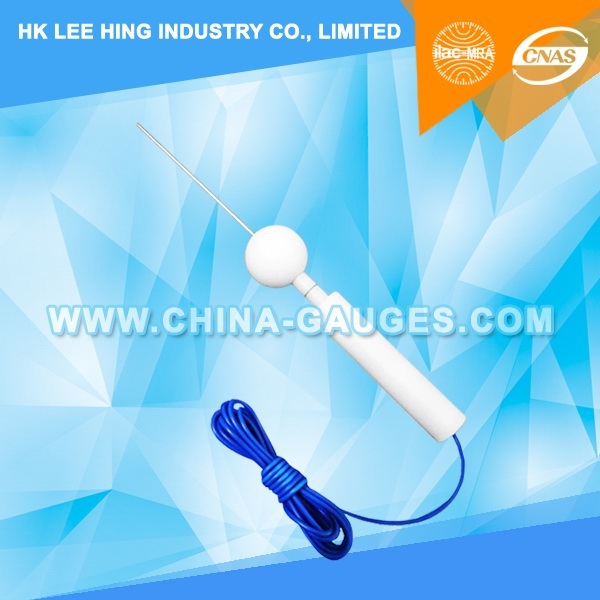

IP3X Test Probe Pin with 3N Thrust

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-CT3

2,5mm Test Probe Pin - IP3X Test Probe of IEC61032

Basic Introduction:

1. According to: IEC 61032:1997 / IEC 60529:2001 / IEC 60065 / IEC 60598  and UL.

2. IP3X Test Probe C ( Test Probe C ) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Technical parameters:

1. Rod length: 100 mm

2. Rod diameter: 2.5 mm

3. Circular-baffle diameter: 35 mm

4. Handle diameter: 10 mm

5. Handle length: 100 mm

6. According to IEC 61032 figure 3 (the Test probe C). Table 6 GB/T4208-2008 (the first characteristic digital 3)

7. Thrust: 3N


1. Standard test refers to the joint part can't touch the live parts or close to the dangerous parts. and 35mm circular baffle can not be enter.
2. In the test requirement for preventing access to the hazardous parts. Test Probe C need to be with push force 3±0.3N.


This probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a tool.


For without thrust products, please use with the push tension dynamometer.
