  • 7006-50-1 E27 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making

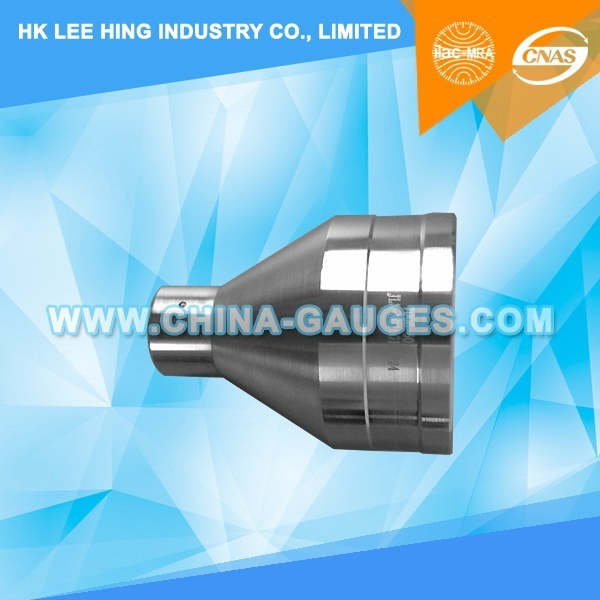

7006-50-1 E27 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making

7006-50-1 E27 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: 7006-50-1
  • Made in China
  • Product description: 7006-50-1 E27 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making. According to standard IEC 60061-3.
  • INQUIRY

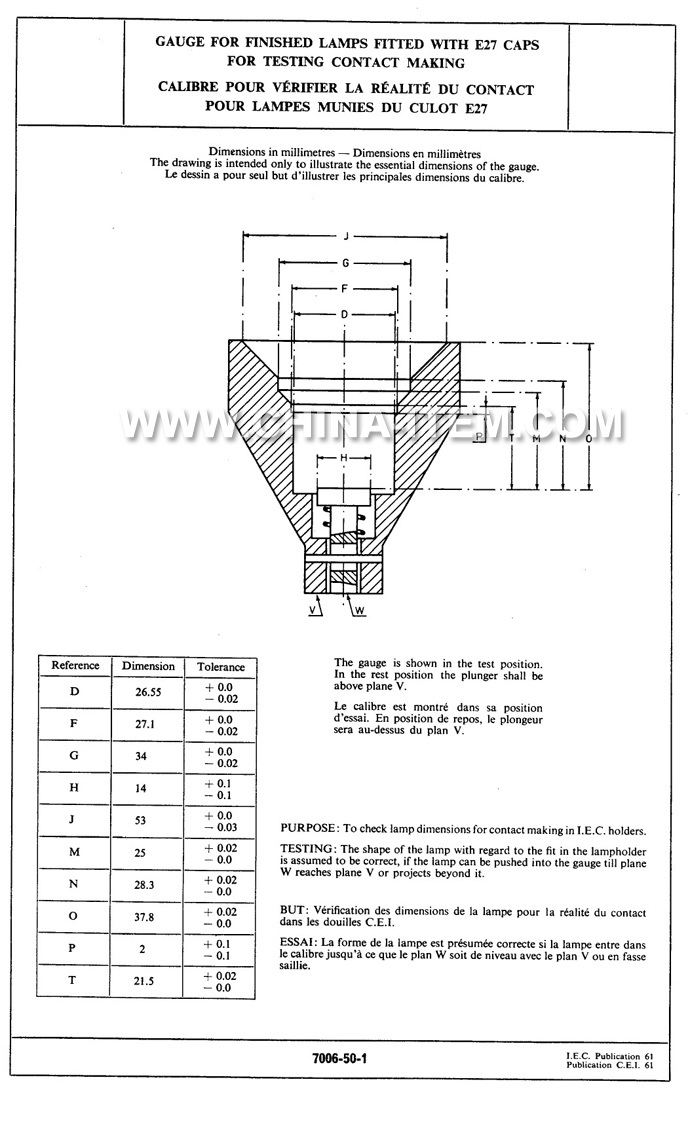

IEC60061-3: 7006-50-1 E27 Gauge for Finished Lamps Fitted with Caps for Testing Contact Making


The drawing is intended only to illustratc the esscntial dimensions of the gauge.

The gauge is shown is the test position. In the rest position the plunger shall be above plane V.

PURPOSE: To check lamp dimensions for contact making in I.E.C. holders.

TESTING: The shape of the lamp with regard to the fit in the lampholder is assumed to be conrrect, if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.
