Home > Lamp Caps Gauges

  • 7006-4B-1 B22d Gauge for Testing the Retention of Caps in the Holder
7006-4B-1 B22d Gauge for Testing the Retention of Caps in the Holder

7006-4B-1 B22d Gauge for Testing the Retention of Caps in the Holder

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: 7006-4B-1
  • Made in China
  • Product description: B22d Gauge for Testing the Retention of Caps in the Holder, 7006-4B-1 According to standard IEC 60061-3
  • INQUIRY

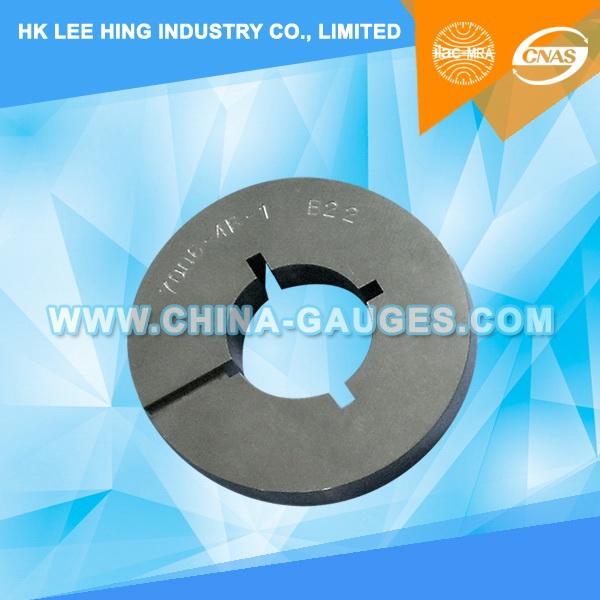

Gauge for testing the retention of B22d caps in the holder, 7006-4B-1

According to standard IEC 60061-3


Purpose:

To check cap dimensions for retention of the cap on the finished lamp in the lampholder.


Testing:

The cap of the lamp shall enter the gauge from surface X, until the pins have passed through slots Q. The caps is then turned through 90°for one pin to enter the gauged pin slot. With a slight pull the pin shall not pass surface Y. The test is made twice, the lamp being rotated through 180°,so that each pin in turn is gauged.

B15 Gauges

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


Main Products: Go Not Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
