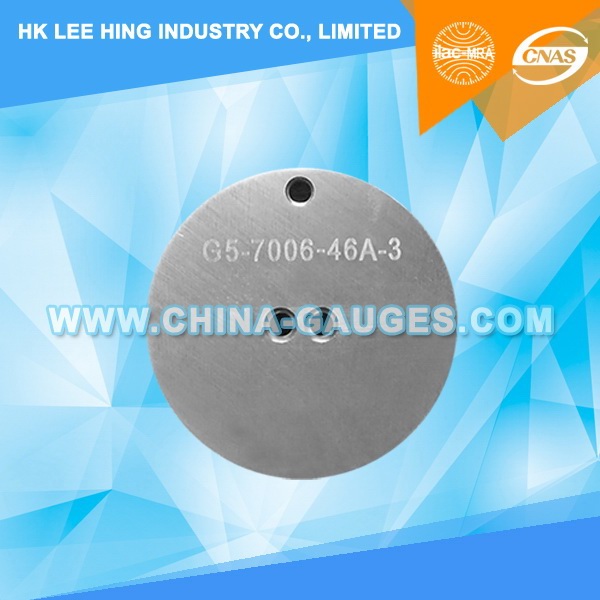

7006-46A-3 G5 Go Gauge for Bi-pin Cap on Finished Lamps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-46A-3

IEC60061-3: 7006-46A-3 G5 Go Gauge for Bi-pin Cap on Finished Lamps

IEC60061-3 G5 Lamp Cap Go Gauge (7006-46A-3)


Purpose:

To check dimensions E max., F min., F max., and the combined pin diameter and displacement of pins (including bosses) of bi-pin caps G5 on finished lamps.


Testing:

The pins of the caps on finished lamps shall enter the gauge at surface O and fully inserted, the surfaces of cap and gauge shall contact.

In this position the end of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y.

Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.



G5 Go Gauge for Bi-pin Cap on Finished Lamps
