Home > Lamp Caps Gauges

  • 7006-24B-1 E39 Go Gauge for Caps on Finished Lamps

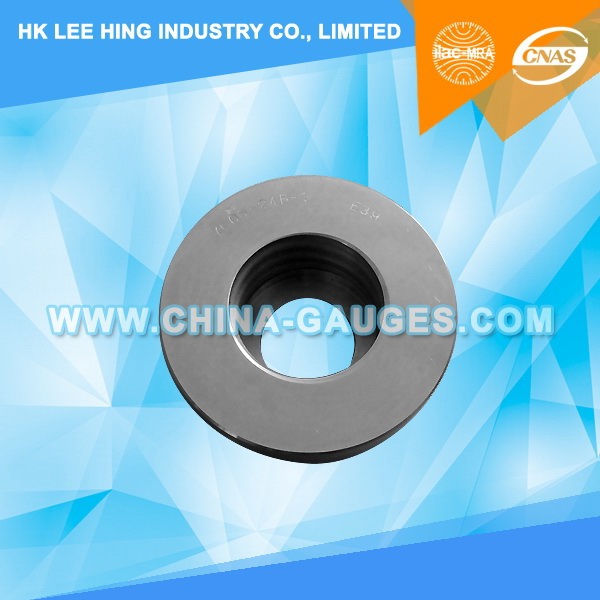

7006-24B-1 E39 Go Gauge for Caps on Finished Lamps

7006-24B-1 E39 Go Gauge for Caps on Finished Lamps

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: 7006-24B-1
  • Made in China
  • Product description: 7006-24B-1 E39 Go Gauge for Caps on Finished Lamps. According to standard IEC 60061-3.
  • INQUIRY

IEC60061-3: 7006-24B-1 E39 Go Gauge for Caps on Finished Lamps


The sharp part of the edge of the thread shall be broken with a radius of 0.2 mm to 0.3 mm.


PURPOSE: To check the maximun dimensions of the crew thread and dimension T1 min, of E39 caps on finished lamps.


TESTING: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact of the cap shall be co-planar with, or project beyond, surface X, When the lamp is being removed from the gauge, at least two fall turns shall be required to disengage the threads.

E39 Gauge of Lamp Caps
