  • 7006-19A-1 BAU15s Go Gauge for Cap on Finished Lamp

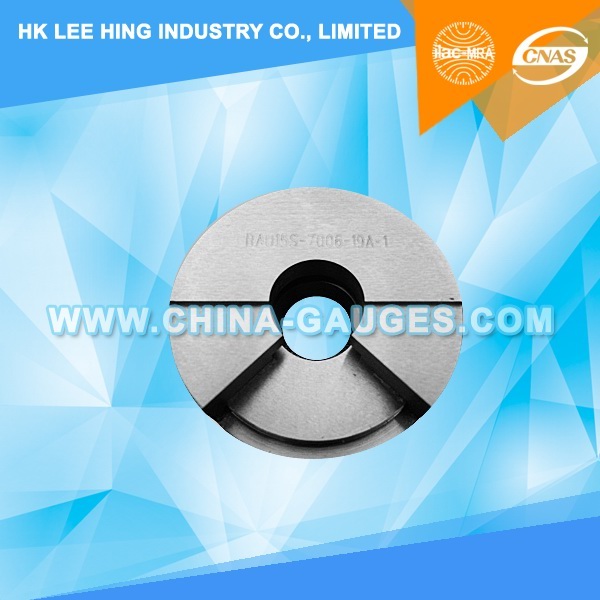

7006-19A-1 BAU15s Go Gauge for Cap on Finished Lamp

7006-19A-1 BAU15s Go Gauge for Cap on Finished Lamp

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: 7006-19A-1
  • Made in China
  • Product description: 7006-19A-1 BAU15s Go Gauge for Cap on Finished Lamp. According to standard IEC 60061-3.

IEC60061-3: 7006-19A-1 BAU15s Go Gauge for Cap on Finished Lamp

PURPOSE: To check dimensions A max., D1 min., D1 max., N min. and the angular displacement of the pins of caps BAU15s on finished lamps.

TESTING: The cap shall enter the gauge at surface W until the pins have passed through the a lots Q. The cap is then turned through a small angle and is pushed so that the pins are in close contact with surface S. In this position, the contact making surface shall not be below surface X nor shall it project ensure interchangeability of the caps in the holder.
