  • IEC Steel Rod Φ2.5mm with Dynamometer 3N

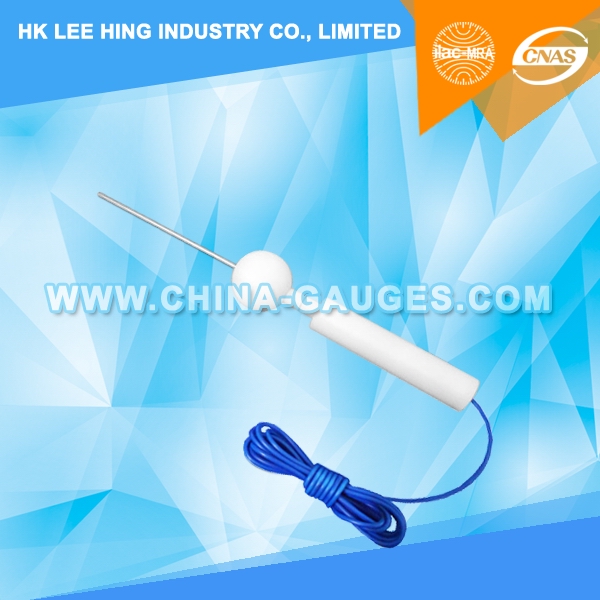

IEC Steel Rod Φ2.5mm with Dynamometer 3N

IEC Steel Rod Φ2.5mm with Dynamometer 3N

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: LX-IP30T
  • Made in China
  • Product description: IP3X Test Probe Pin is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.
  • INQUIRY

IEC Steel Rod Φ2.5mm with Dynamometer 3N


Basic Introduction:

1. According to: IEC 61032:1997 / IEC 60529:2001 / IEC 60065 / IEC 60598  and UL.

2. IP3X Test Probe C ( Test Probe C ) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.


Technical parameters:

1. Rod length: 100 mm

2. Rod diameter: 2.5 mm

3. Circular-baffle diameter: 35 mm

4. Handle diameter: 10 mm

5. Handle length: 100 mm

6. According to IEC 61032 Figure 3 (the Test probe C). Table 6 IEC 60529 (the first characteristic digital 3)

7. Thrust: 3N
