  • IEC 61032 Test Probes for Verification and Testing The Protection Against Access to Hazardous Parts
IEC 61032 Test Probes for Verification and Testing The Protection Against Access to Hazardous Parts

IEC 61032 Test Probes for Verification and Testing The Protection Against Access to Hazardous Parts

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-61032
  • Made in China

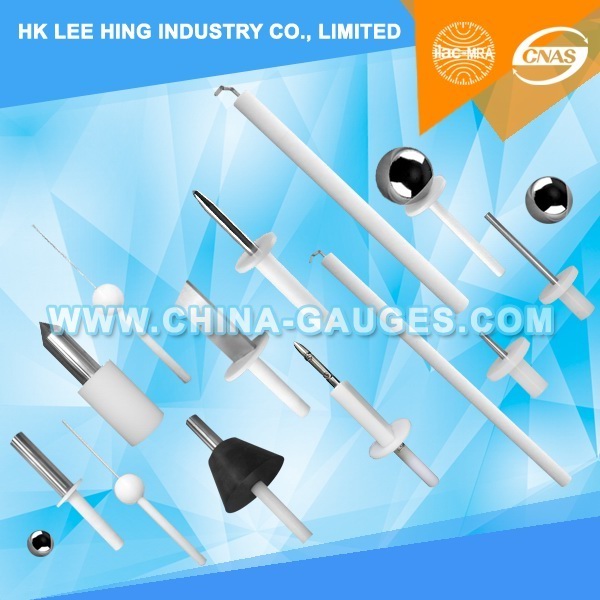

  • Product description: IEC 61032 Access Test Probe Kit.
  • INQUIRY

Model Describe Reference   standard Specification
LX-1201 IEC 61032 Figure 1 - Test probe A

IEC60529

IEC61032

Ball diameter: 50 mm

Baffle plate diameter: 45 mm

Baffle plate thickness: 4 mm
Handle diameter: 10 mm
Handle length: 100 mm
Material: Nylon + stainless steel
LX-1202 IEC 61032 Figure 2 - Test probe B

IEC60529

IEC61032

IEC60335

IEC60884

IEC60745

IEC60045

IEC60950

IEC60238

IEC60601

IEC60968

IEC61010

IEC60065

Knurled   finger diameter: 12 mm
Knurler finger length: 80 mm
Baffle plate diameter: 50 mm
Baffle plate length: 100 mm
Baffle thickness: 20 mm
LX-1203 IEC 61032 Figure 3 - Test probe C

IEC61032

IEC60529

Test probe length: 100 mm

Test probe diameter: 2.5 mm

Dam-sphere diameter: 35 mm

Handle diameter: 10 mm

Handle length: 100 mm

Material: Nylon + hardened steel

LX-1204 IEC 61032 Figure 4 - Test probe D IEC61032
IEC60529

Test probe length: 100 mm

Test probe diameter: 1 mm

Dam-sphere diameter: 35 mm

Handle diameter: 10 mm

Handle length: 100 mm

Material: Nylon + hardened steel

LX-B500 IEC 61032 Figure 5 – Test probe 1 IEC61032

Diameter: 50 mm

Weight: 500 g

LX-B015 IEC 61032 Figure 6 – Test probe 2 IEC61032 Diameter: 12.5 mm
Weight: 15 g
LX-1211 IEC 61032 Figure 7 – Test probe 11 IEC61032
IEC60065

IEC60335-1

IEC60884-1

IEC60238

IEC60950

IEC61010

Nodular Finger length: 80 mm

Nodular Finger diameter: 12 mm

Dam-board diameter: 50 mm

Dam-board thickness: 5 mm

Material: Nylon and stainless steel

LX-1213 IEC 61032  Figure 9 – Test probe 13

IEC60065

IEC60335-1

IEC60950

IEC61302

IEC60601

IEC60745

Test probe diameter: head 3 mm, tail 4 mm

Test probe length: 15 mm

Dam-board diameter: 25 mm

Dam-board thickness: 5 mm

Material: Handle is made of Nylon, tip is stainless steel

LX-1212 IEC 61032 Figure 8 – Test probe 12

IEC61032

Test probe diameter: 4 mm

Test probe length: 50 mm

Dam-board diameter: 25 mm

Dam-board thickeness: 4 mm

Material: Handle is made of Nylon, tip is stainless steel

LX-1219 IEC 61032 Figure 13 – Test probe 19 (small finger probe Φ 5.6) IEC61032
EN71
ASTM F963

Knurled finger diameter:   φ5.6 mm

Head radius: 2.8 mm

Knurled finger length: 44 mm(Three knurls,16.7 mm   knurl)

Material: Nylon and stainless steel

LX-1218 IEC 61032 Figure 12 – Test probe 18 (small finger probe Φ 8.6) IEC61032
EN71
ASTM F963

Knurled finger diameter: φ8.6 mm

Head radius: 4.3 mm

Knurled finger length: 57.9 mm (Three knurls,19.3 mm knurl)

Material: Nylon and stainless steel

LX-1231 IEC 61032 Figure 14 – Test probe 31 IEC61032

Test Rod diameter: φ25 mm

Rigid Finger length: 80 mm

Dam-board diameter: 60-110 mm

LX-1232 IEC 61032 Figure 15 – Test probe 32 IEC61032 Test   Rod diameter: φ25 mm
Dam-board diameter: 50 mm
LX-1241 IEC 61032 Figure 16 – Test probe 41

IEC61032

Test Rod diameter: 30 mm

Rigid Finger length: 80 mm

Handle diameter: 50 mm

Handle length: 80 mm

LX-1243 IEC 61032 Figure 17 – Test probe 43 IEC61032 Bar wide: 50 mm
Thickness: 5 mm
