Home > Electrical Safety Test Equipment

  • IEC 60065 Figure 11 Test Apparatus for Devices Forming a Part of The Mains Plug

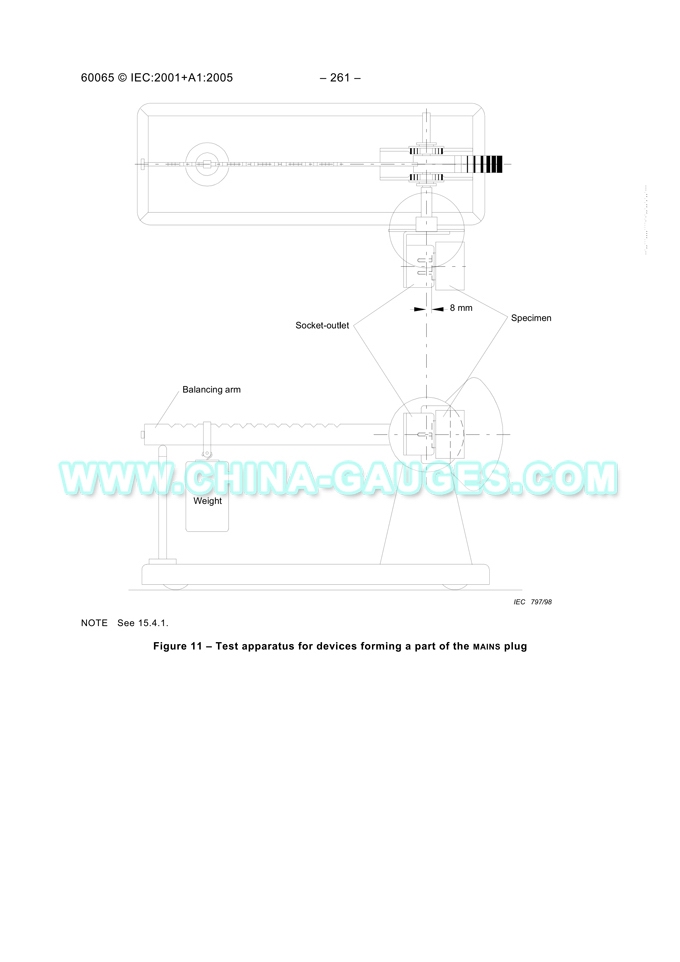

IEC 60065 Figure 11 Test Apparatus for Devices Forming a Part of The Mains Plug

IEC 60065 Figure 11 Test Apparatus for Devices Forming a Part of The Mains Plug

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: LX-L1Y
  • Made in China
  • Product description: The balancing arm of the test apparatus pivots about a horizontal axis through the center lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket
  • INQUIRY

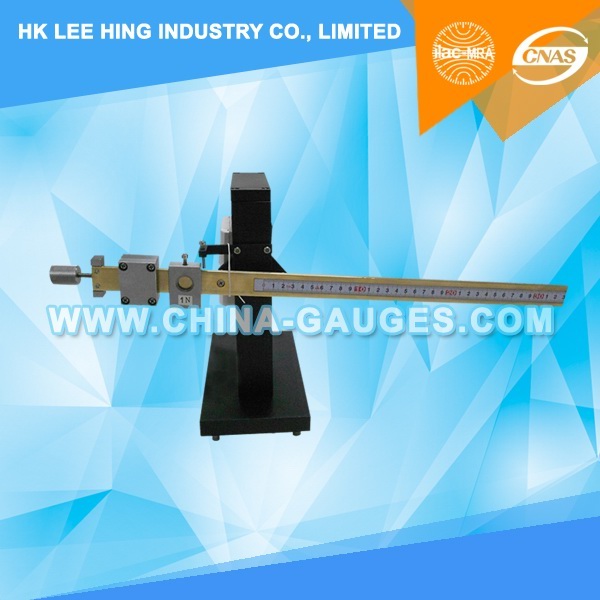

IEC 60065 Figure 11 Test Apparatus for Devices Forming a Part of The Mains Plug


Product Specifications:

For measuring and testing the torque strain exerted by appliances with plug pins on socket-outlets, in accordance with IEC 60065 clause15.4.1 and figure 11, IEC 60335-1 clause 22.3, IEC 60884-1 clause 14.23.2.


The balancing arm of the test apparatus pivots about a horizontal axis through the center lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.


Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
