EN 60350-2:2013 Standardised Cookware

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-NX16

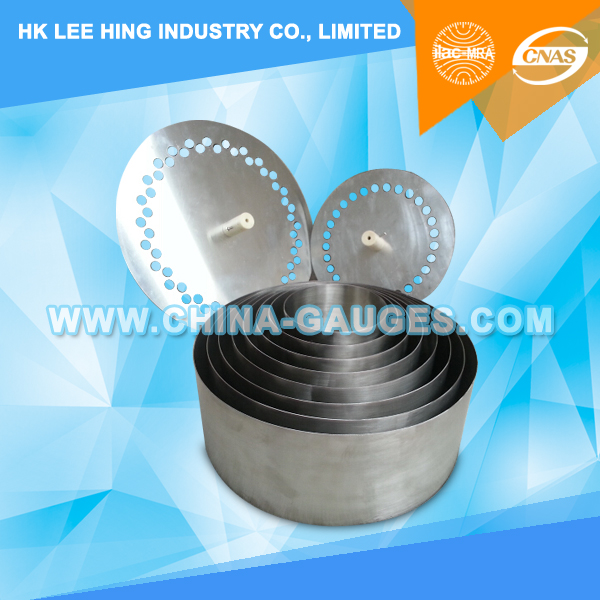

EN 60350-2:2013 Standardised Cookware


Application:

The Standardised Cookware (Stainless Steel Pans) according to EN 60350-2:2013 requirements, mainly used to assess the energy efficiency of electromagnetic cooker test cookware.


Technical Parameters:

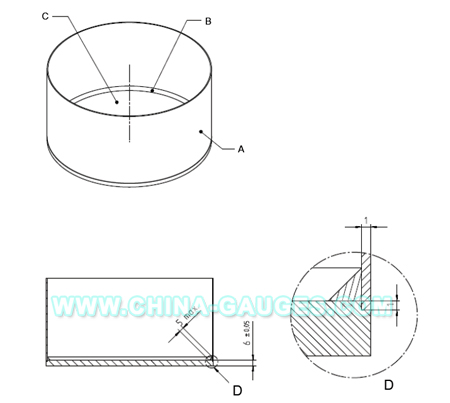

a) The Standardised Cookware bottom material is made of 1.4016 stainless steel, bottom thickness size is 6 mm ± 0.05 mm, bottom cannot be protrude outwards.

b) The Standardised Cookware walls material is made of 1.4301 stainless steel, walls thickness is 1 mm ± 0.05 mm, It does not have a handle and a protruding cylinder.

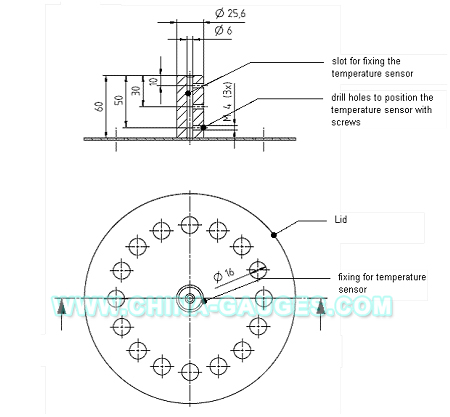

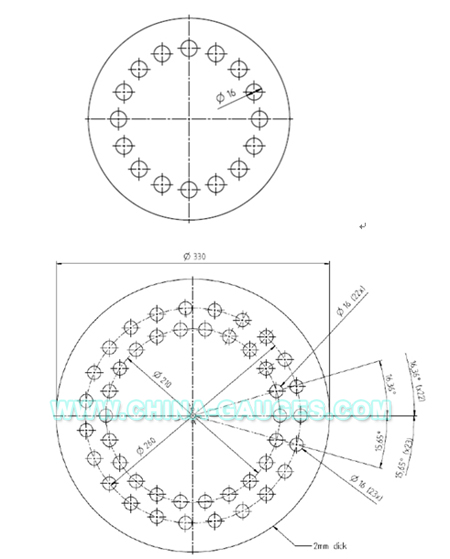

c) The Standardised Cookware lid material is made of aluminum, lid thickness is 2 mm ± 0.05 mm, diameter of each hole in the lid is 16 mm ± 0.1 mm, and holes are evenly distributed on the hole ring.

d) A fixture with a temperature sensor at the center of the lid, its material is plastic.



Specification:

Diameter of the cookware bottom (outside)

mm
Diameter of the lid

mm
Lid hole circle diameter

mm
Number of holes on the circle
Total cookware height (outside)

mm
Flatness of cookware bottom

mm
Water load

g
Cooking zone size category

mm
Standardised cookware categories
120 ± 0,5 130 ± 1 80 ± 1 7 125 ± 0,5
≥ 0
< 0,075
650
≥ 100
< 130
A
150 ± 0,5 165 ± 1 110 ± 1 11 125 ± 0,5
≥ 0
< 0,075
1030
≥ 130
< 160
180 ± 0,5 200 ± 1 140 ± 1 16 125 ± 0,5
≥ 0
< 0,075
1500
≥ 160
< 190
B
210 ± 0,5 230 ± 1 170 ± 1 22 125 ± 0,5
≥ 0
< 0,1
2050
≥ 190
< 220
C
240 ± 0,5 265 ± 1 200 ± 1 29 125 ± 0,5
≥ 0
< 0,1
2700
≥ 220
< 250
270 ± 0,5 300 ± 1 230/210 a ± 1 18/18 a 125 ± 0,5
≥ 0
< 0,15
3420
≥ 250
< 280
D
300 ± 0,5 330 ± 1 260/210 a ± 1 23/22 a 125 ± 0,5
≥ 0
< 0,15
4240
≥ 280
< 310
330 ± 0,5 365 ± 1 290/270 a ± 1 27/27 a 125 ± 0,5
≥ 0
< 0,15
5140
≥ 310
≤ 330
a Number of holes are arranged on two hole circles.
