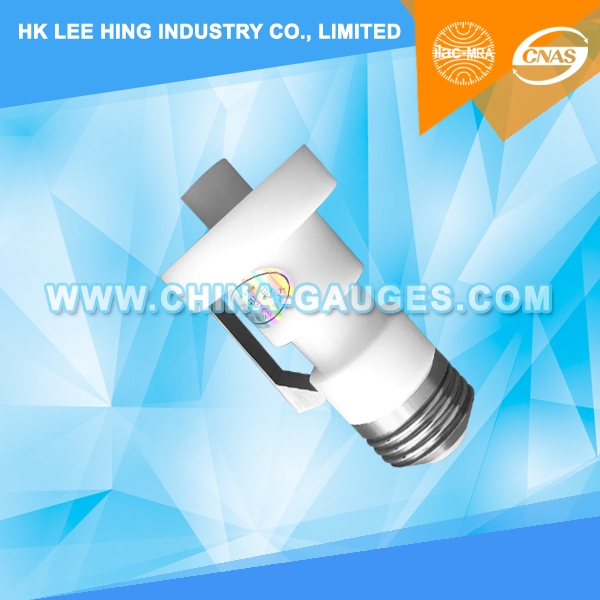

E40 Plug Gauge for Lampholders for Testing Protection Against Accidental Contact 7006-24-3

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-24-3

E40 Plug Gauge for Lampholders for Testing Protection Against Accidental Contact 7006-24-3

PURPOSE: To check E40 lampholders in respect of protection against accidental contact.

TESTING: The gauge is screwed fully home.

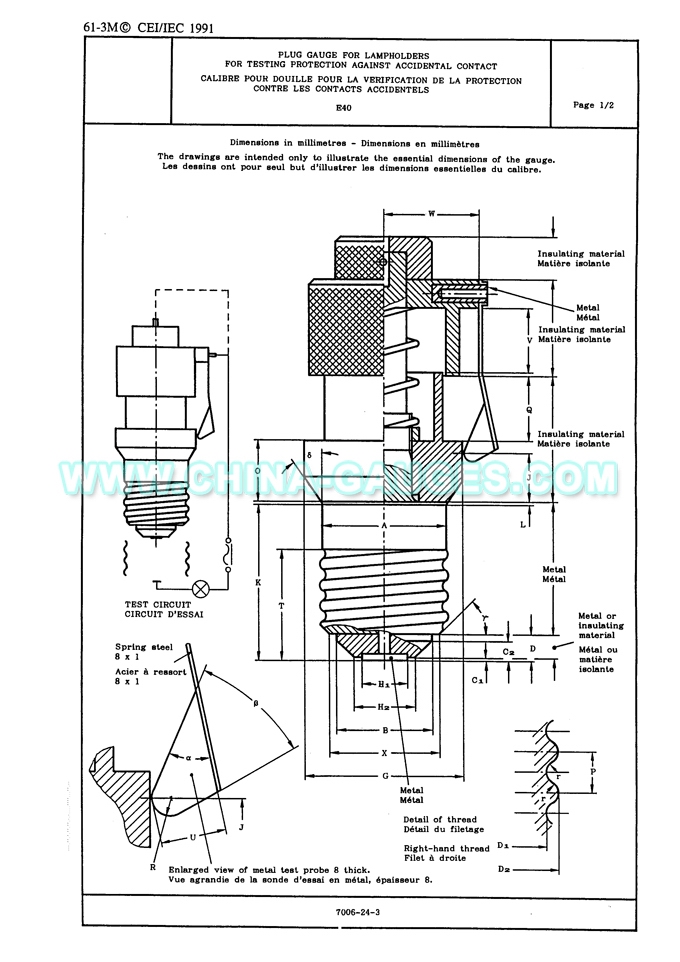

The test circuit is checked as shown by the dotted line. In this position the indicator lamp shall light.

With the gauge still in this position the plug is connected to the test probe, which is then slid downwards as far as it will go into the space between the gauge and the holder.

In this position the lamp shall not light.


Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
