  • E17 Go Gauge for Lampholders 7006-25H-1

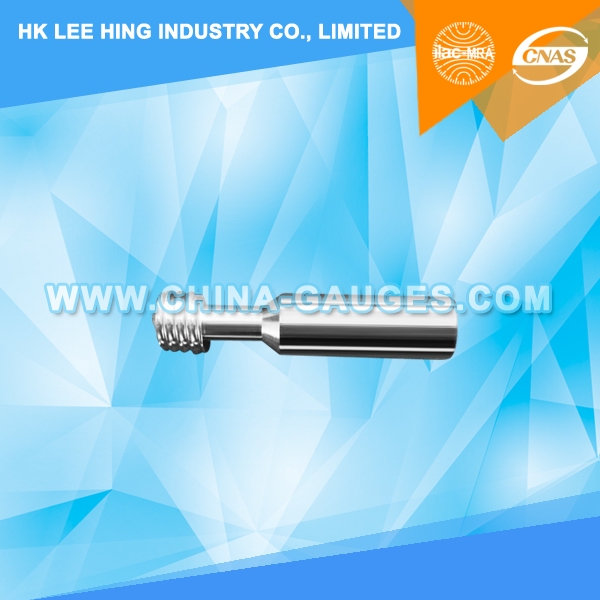

E17 Go Gauge for Lampholders 7006-25H-1

E17 Go Gauge for Lampholders 7006-25H-1

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: 7006-25H-1
  • Made in China
  • Product description: E17 Go Gauge for Lampholders 7006-25H-1. According to standard IEC 60061-3.

E17 Go Gauge for Lampholders 7006-25H-1

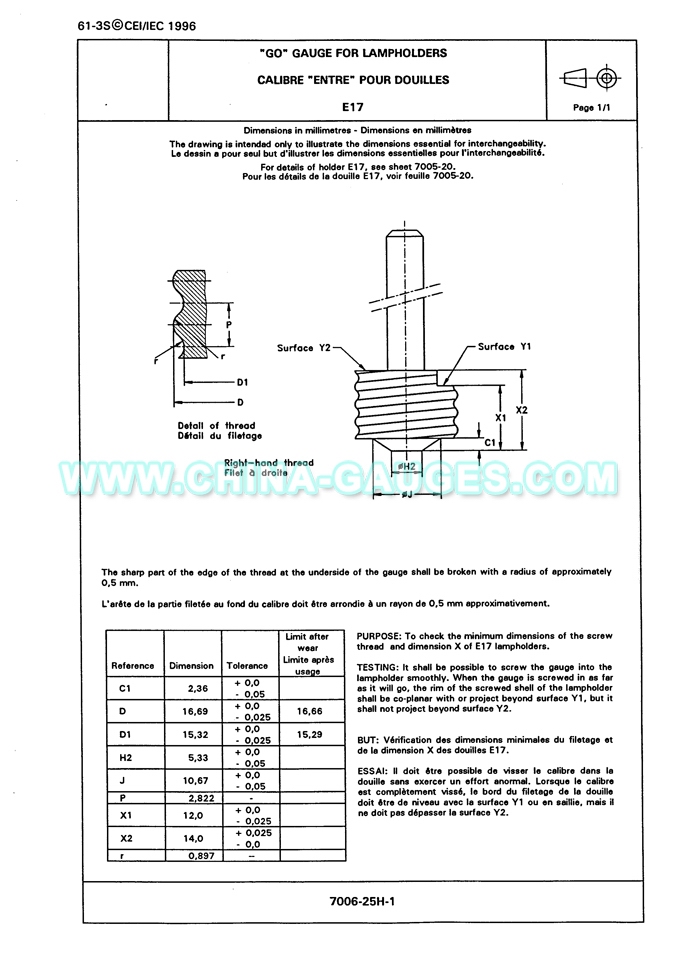

The sharp part of the edge of the thread at the underside of the gauge shall be broken with a radius of approximately 0,5 mm.

PURPOSE: To check the minimum dimensions of the screw thread and dimension X of E17 lampholders.

TESTING: It shall be possible to screw the gauge into the lampholder smoothly. When the gauge si screwed in as far as it will go, the rim of the screwed shell of the lampholder shall be co-planar with or project beyond surface Y1, but it shall not project beyond surface Y2.
