  • E10 Go Gauges for Screw Thereads of Lampholders 7006-25-7
E10 Go Gauges for Screw Thereads of Lampholders 7006-25-7

E10 Go Gauges for Screw Thereads of Lampholders 7006-25-7

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Test Report
  • Item No.: 7006-25-7
  • Made in China
  • Product description: E10 Go Gauges for Screw Thereads of Lampholders 7006-25-7. According to standard IEC 60061-3.
  • INQUIRY

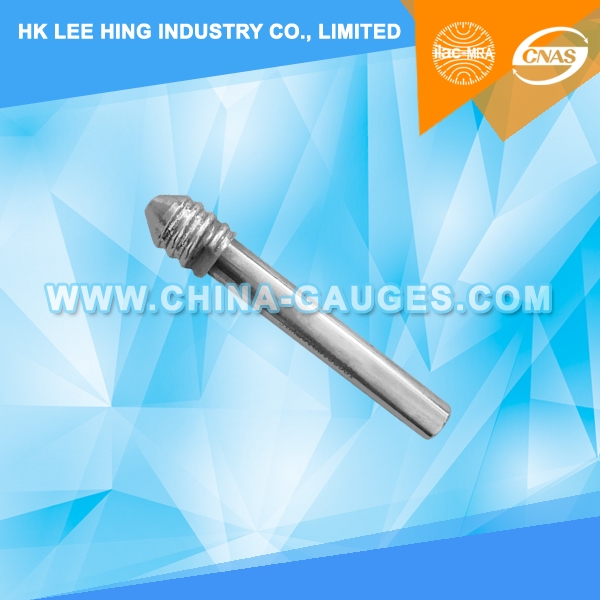

E10 Go Gauges for Screw Thereads of Lampholders 7006-25-7

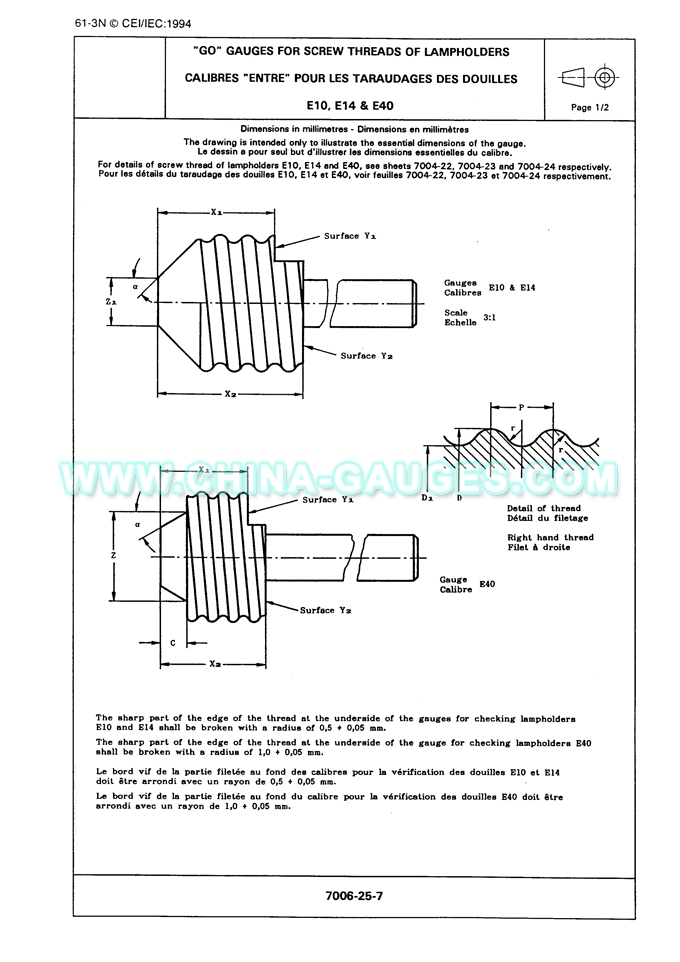

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of screw thread of lampholders E10, see sheets 7004-22, respectively.

The sharp part of the edge of the threed at the underside of the gauge for checking lampholders E10 shall be broken with a radius of 0,5 + 0,05 mm.

An additional allowance for wear of - 0,01 mm is permitted beyond the manufacturing tolerance indicated.

PURPOSE: To check the minimum dimensions of the lampholder screw thread and dimension X shown on sheet 7005-20.

TESTING: It shall be possible to screw the gauge into the lampholder without using undue force.
(For the torque to be applied in case of doubt, see IEC 238, subclause 4.4).
When the gauge has been screwed in as far as it will go, the rim of the screw shell of the lampholder shall be co-planar with, or project beyond, surface Y1 but it shall not project beyone surface Y2.
