CEE 7 Plugs and Socket Outlets Gauge

CEE 7 Plugs and Socket Outlets Gauge

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-CEE7
  • Made in China
  • Product description: CEE 7 Plugs and Socket Outlets Gauge. According to standard CEE 7.
  • INQUIRY

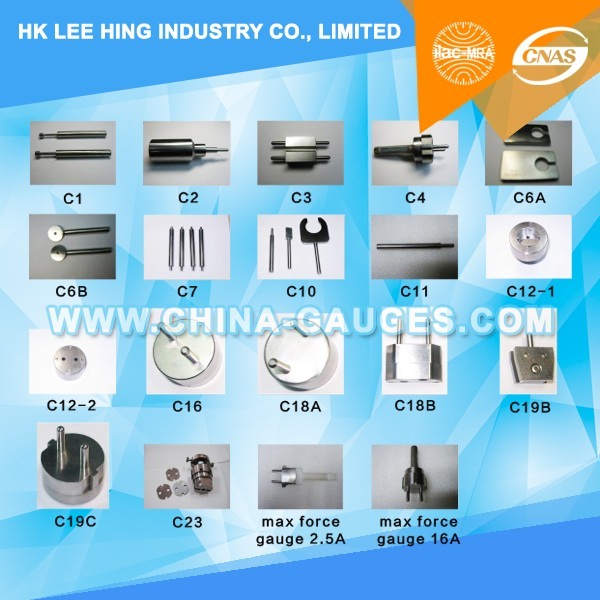

CEE 7 Plugs and Socket Outlets Gauge


NO Figure   No. Description
1 CEE7/C1 10/16A   250V two-pole socket-outlets Gauges c1 for size of entry holes for plug pins
2 CEE7/C2A.B 10/16A   250V two-pole socket-outlets and two-pole plugs with pin-type   earthing-contact Gauges c2 for minimum opening of contact tubes
3 CEE7/C3 10/16A   250V two-pole socket-outlets Gauge c3 for acceptance of two-pole plugs
4 CEE7/C4 10/16A   250V two-pole socket-outlets with side earthing-contacts Gauge c4 for   acceptance of two-pole plugs with side earthing contacts
5 CEE7/C6A.B 10/16A   250V two-pole fixed socket-outlets Gauges c6 for fixing holes or slots
6 CEE7/C7A.B.C.D 10/16A   250V two-pole socket-outlets Gauges c7 for distance to point of first contact
7 CEE7/C8 10/16A   250V two-pole socket-outlets Gauge c8 for wiring channel
8 CEE7/C9A.B 2.5A   250V and 10/16A250V two-pole plugs and 10/16A 250V two-pole socket-outlets   with pin-type earthing-contact Gauges c9 for pin diameter
9 CEE7/C10A.B 10/16A   250Vtwo-pole plugs Gauges c10 for pin spacing
10 CEE7/C11 10/16A   250V two-pole socket-outlets and two-pole plugs with pin-type   earthing-contact Gauge c11 for maximum opening of contact tubes
11 CEE7/C12 10/16A   250V two-pole plugs with side earthing-contacts Gauge c12 for   interchangeability
12 CEE7/C13 2.5A   250V two-pole plugs for class ii appliances Gauge for interchangeability
13 CEE7/C14 10/16A   250V two-pole flush-type socket-outlets for screw fixing Gauge for dimensions   of mounting boxes
14 CEE7/C15 10/16A   250V two-pole plugs without earthing contact Gauge for non-interchangeability   with two-pole plugs with earthing contact
15 CEE7/C16 10/16A   250V two-pole socket-outlets with side earthing-contacts Gauge for   non-acceptance of two-pole plugs wihout earthing contact
16 CEE7/C18 10/16A   250V two-pole socket-outlets without earthing contact Gauge for checking   impossibility of single-pole insertion of plugs
17 CEE7/C19A.B.C 2.5A   250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of   single-pole insertion of plugs into socket-outlets
18 CEE7/C19a 2.5A   250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of   single-pole insertion of plugs into socket-outlets
19 CEE7/C20 Device   for testing non-solid pins
20 CEE7/C21 Device   for checking the resistance to lateral strain of 10/16A 250V two-pole fixed   socket-outlets
21 CEE7/C22 Splash   apparatus
22 CEE7/C23 Device   for measuring the contact pressure of earthing contacts of 10/16A 250V   two-pole socket-outlets with side earthing-contacts
23 CEE7/C24 Apparatus   for breaking capacity and normal operation tests
24 CEE7/C25 Circuit   diagrams for breaking capacity and normal operation tests
25 CEE7/C26 Apparatus   for checking the withdrawal force
26 CEE7/C27 Apparatus   for testing the cord anchorage
27 CEE7/C28 Apparatus   for flexing test
28 CEE7/C29 Impact-test   apparatus
29 CEE7/C30 Tumbling   barrel
30 CEE7/C31 Apparatus   for impact test at low temperature
31 CEE7/C32 Arrangement   for compression test
32 CEE7/C33 Apparatus   for abrasion test on insulating collars of plug pins
33 CEE7/C34 Ball-pressure   apparatus
34 CEE7/C35 Apparatus   for pressure test on plugs and portable socket-outlets
35 CEE7/C36 Hot   mandrel apparatus
36 CEE7/C37 Arrangement   and dimensions of the electrodes for the tracking test
37 CEE7/C104
38 CEE7/C105/C1A
39 CEE7/C106/C3A
40 IEC   60884-Fig9 Gauge   for checking non-accessibility of live parts, through shutters
41 IEC   60884-Fig10 Gauge   for checking non-accessibility of live parts, through shutters and of live   parts of socket-outlets with increased protection
