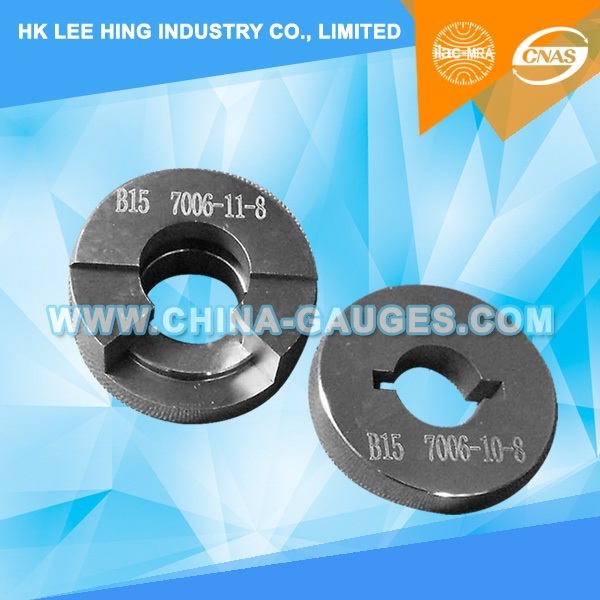

B15 Go Not Go Gauge of Finished Lamp Caps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-B15GN

B15 Go Not Go Gauge of Finished Lamp Caps Include:

1) IEC60061-3 7006-11-8 B15 Go Gauges for Caps on Finished Lamps;

To check dimensions A max., N min. D1 min., D1 max., and the diametrical position of the pins of caps B15 on finished lamps.

The cap shall enter the gauge until the pins have passed through the slot Q. The cap is then turned through a small angle and is pressed so that the pins are in close contact with surface S.
In this position, the contact making surface shall not be below surface X nor shall it project beyond surface Z.

2) IEC60061-3 7006-10-8 B15 Not Go Gauges for Caps on Finished Lamps;

To check dimension A in, of caps B15 on finished lamps.

Caps on finished lamps shall be assumed to be correct if the gauge does not pass over the cap by its own weight.
