  • Arm Probe for Testing Tortuous Path Guarding of Cutting Means Through the Feed Intake Opening

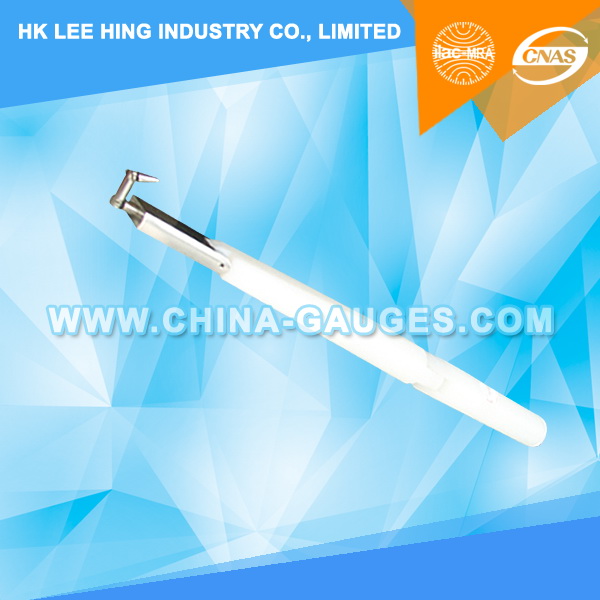

Arm Probe for Testing Tortuous Path Guarding of Cutting Means Through the Feed Intake Opening

Arm Probe for Testing Tortuous Path Guarding of Cutting Means Through the Feed Intake Opening

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-A102
  • Made in China

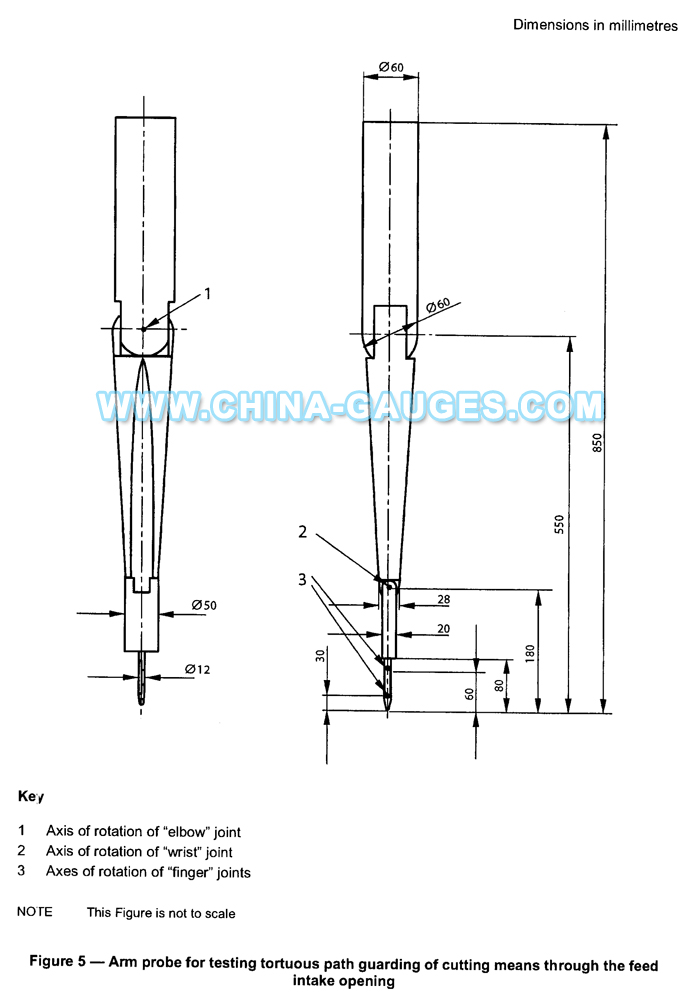

  • Product description: The adult arm probe conforms to EN 50636-2-100 figure 2 and EN13683-2003: 5.2.1.3 fig 5. It is used to simulate the adult to test whether the hazardous parts can be touched.
  • INQUIRY

Arm Probe for Testing Tortuous Path Guarding of Cutting Means Through the Feed Intake Opening


Conform to the CSA C22.2. Handle is nylon, tip is stainless steel.The adult arm probe conforms to EN 50636-2-100 figure 2 and EN13683-2003: 5.2.1.3 fig 5. It is used to simulate the adult to test whether the hazardous parts can be touched.

It can be used for anti-electric shock test when equipped with amphenol connector.

The arm probe shall not be able to make contact with the hazardous moving parts when it is inserted into the openings up to the entire length of each arm probe. The articulations of each probe shall be manufactured to enable a rotation of ±90°about the articulation axis. The movements of the joints of each probe shall be free enough to allow easy articulation as the probe is inserted into the opening. Each probe shall be applied with force not exceeding 20 N.

The arm probe shall not contact the hazardous moving parts. When the test is conducted with the debris collector in place it shall not be possible to push any part of the debris collector into hazardous moving parts.
