Abrasion Resistance Tester of IEC 60335-1 and IEC 60950

Abrasion Resistance Tester of IEC 60335-1 and IEC 60950

  • Measurement & Analysis Instruments > Safety Instrument
  • Include ISO 17025 CNAS & ILAC Calibration Certificate
  • Item No.: LX-AR23
  • Made in China
  • Product description: Abrasion Resistance Tester according to IEC 60950 figure 2K and clause 2.10.8.4, IEC 60335-1 clause 21.2, used to check abrasion strength of printed circuit boards or the insulating accessible parts o
  • INQUIRY

Abrasion Resistance Tester of IEC 60335-1 and IEC 60950



Specification:

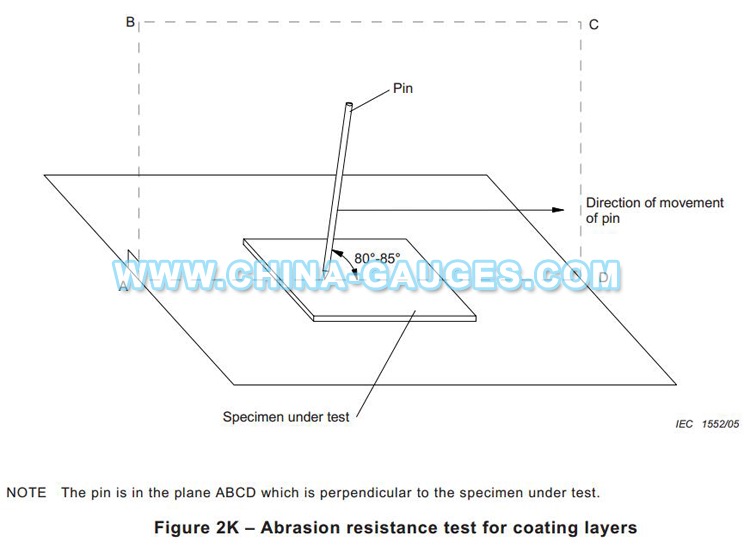

1) According to IEC 60950 figure 2K and clause2.10.8.4, IEC 60335-1 clause 21.2.

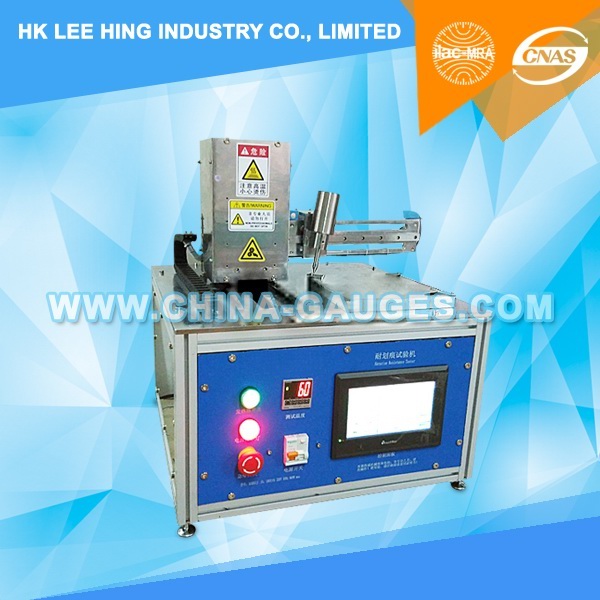

2) Abrasion Resistance Tester is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances.


3) Abrasion resistance tester can touch screen set the X axis arbitrary stroke 0-180mmand the Y shaft arbitrary spacing (0 ~180mm) and Z axis with lifting motor, and the speed of the X axis can be regulated within 0 ~30 mm/s, Y axis speed can be adjusted in the range of 0 ~20mm. At the same time, the testing machine can provide the heating function for the sample, and the temperature display panel is provided, which is convenient to use, simple operation and complete function.



Technical:

Input Voltage

220V / 50Hz

Control System

PLC + Touch Screen

Preheating Tablet Size

150 mm *150 mm

Drive Mode

Three-axis Motion

Pattern

Auto & Manual

Touch Screen Size

7 inch

Temperature Module

PLC
