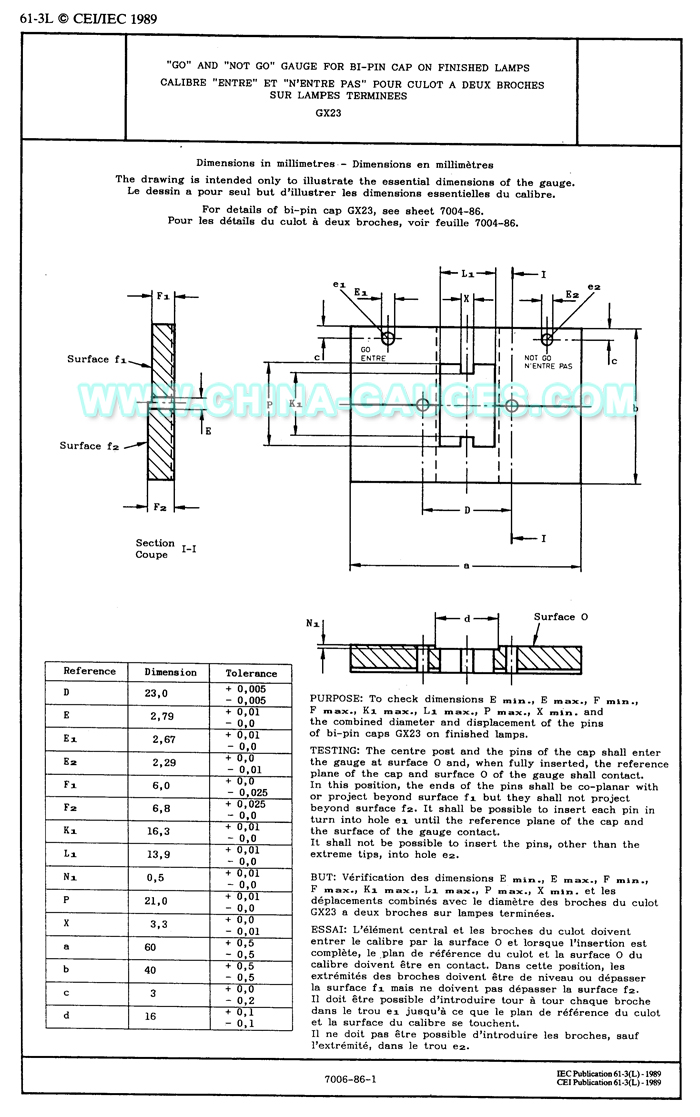

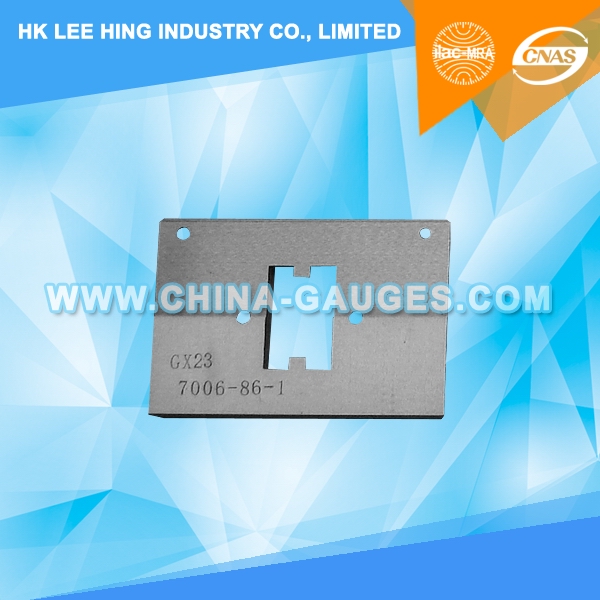

7006-86-1 GX23 Go and No Go Gauge for Bi-pin Cap on Finished Lamps.
PURPOSE: To check dimensions E min., E max., F min., F max., K1 max., L1 max., P max., X min. and the combined diamenter and displacement of the pins of bi-pin caps GX23 on finished lamps.
TESTING: The centre post and the pins of the cap shall enter the gauge at surface O and, when fully inserted, the reference paane of the cap and surface O of the gauge sahll contact.
In this position ,the ends of the pins shall be co-planar with beyond surface f2. It shall be possible to insert each pin in turn into hole e1 until the reference plane of the cap and the surface ot the gauge contact.
It shall not be possible to insert the pins, toher than the extreme tips, into hole e2.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
