7006-69-2 G23 Go and Not Go Gauge for Bi-pin Caps on finished Lamps

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-69-2

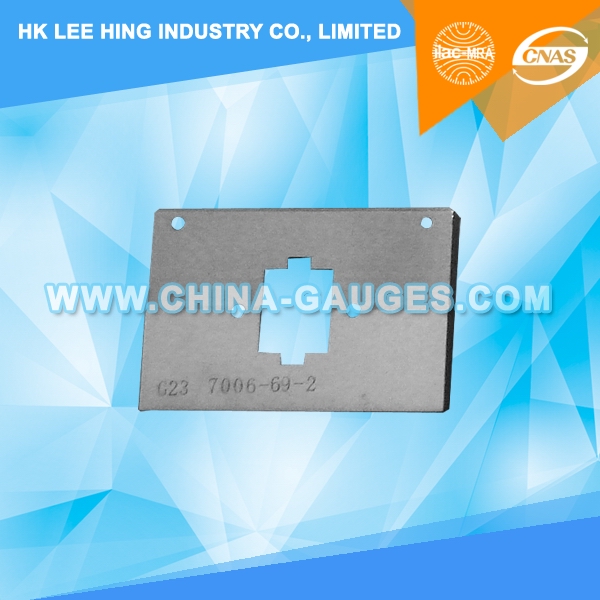

7006-69-2 G23 Go and Not Go Gauge for Bi-pin Caps on finished Lamps

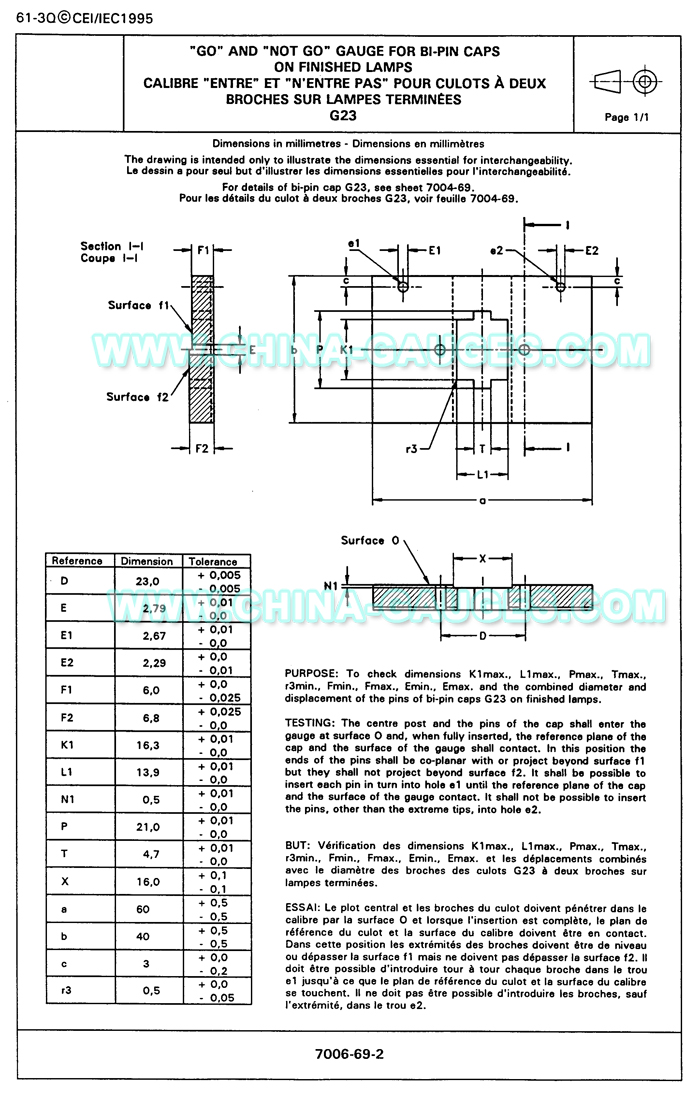

To check dimensions K1 max., L1 max., P max., T max., r3min., Fmin., Fmax., Emin., Emax. and the combined diameter and displacement of the pins of bi-pin caps G23 on finished lamps.


The centre post and the pins of the cap shall enter the gauge at surface O and, when fully inserted, the reference plane of the cap and the surface of the gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface f1 insert each pin in turn into hole e1 until the reference plane of the cap and the surface of the gauge contact. It shall not be possible to insert the pins, other than the extreme tips, into hole e2.

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
