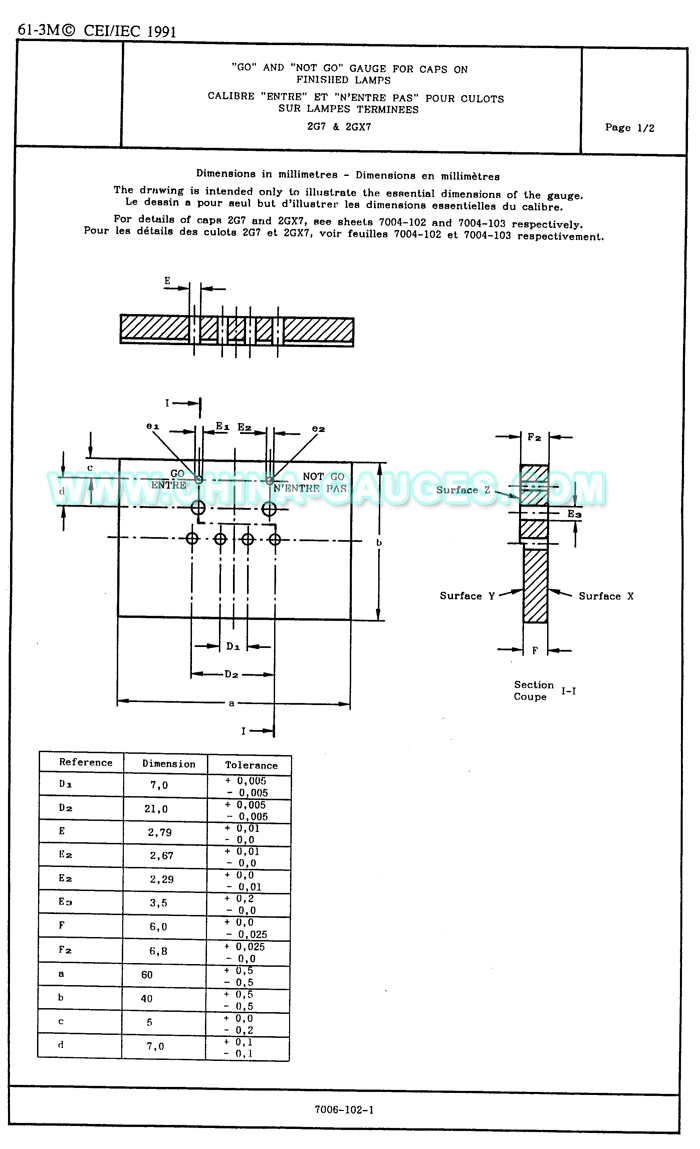

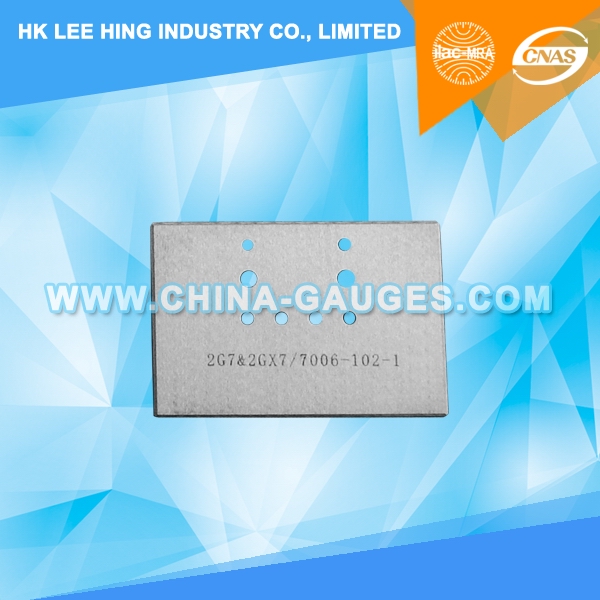

7006-102-1 2G7 & 2GX7 Go and No Go Gauge for Caps on Finished Lamps.
PURPOSE: To check dimensions E min., E max., F min., F max., and the combined diameter and displacement of the pins of caps 2G7 and 2GX7 on finished lamps.
The cap shall enter the gauge at surface X and, when fully inserted, the reference plane of the cap and surface X of the gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface Z.
In shall be possible to insert each pin in turn into hole e1 until the reference plane of the cap and the surface of the gauge contact.
It shall not be possible to insert the pins, other than the extreme tips, into hole e2.
