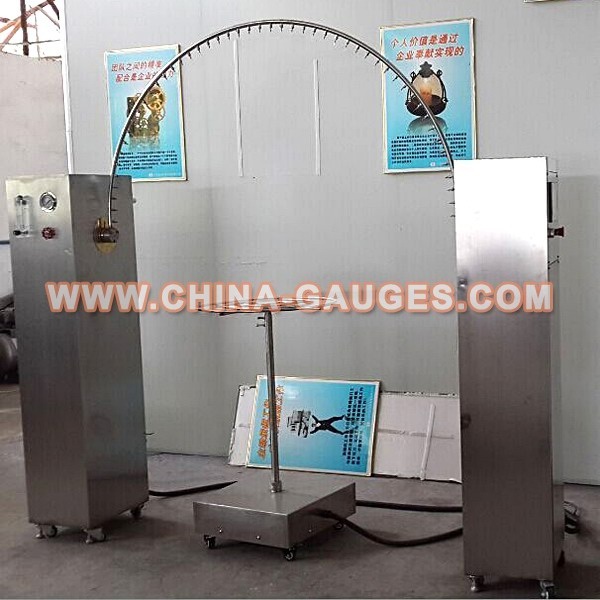

IPX3-4 Pipe Rain Test Machine

Application

The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

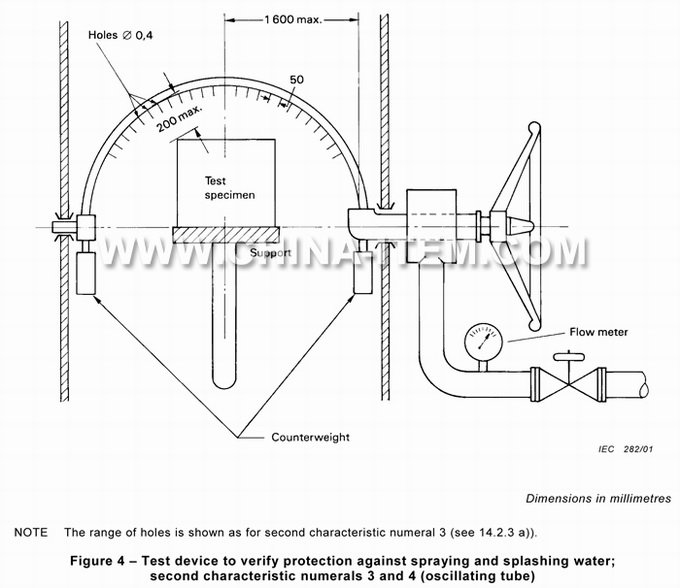

IPX3 IPX4 Oscillating Tube Tester is composed of three parts: The swing pipe, swivel table and swing pipe column (by the water tank, water pump, float valve, flow meter, pressure gauges, pressure regulating valves, water filter, motor, electric control system, etc.).



Technology Parameter

Power Supply

Single phase AC220V, 50Hz

Swing Pipe diameter

15mm (304 stainless steel)

Swing Pipe radius

R800mm;

Orifice diameter

0.4mm

Orifice angle

IPX3: 120°;

IP4X: 180°

Pendulum Angle

IPX3: 120°(±60°);

IPX4: 360°(±180°)

Swing Pipe Speed

IPX3: 4s/time (2x120°)

IP4X: 12s/time (2x180°)

Water discharge

1-10L/min, adjustable

Test time

0-999mins, can preset

Swivel table diameter

600mm

Swivel table speed

1-5 rpm/min

Adjustable telescopic pipe height

1000-1700mm
