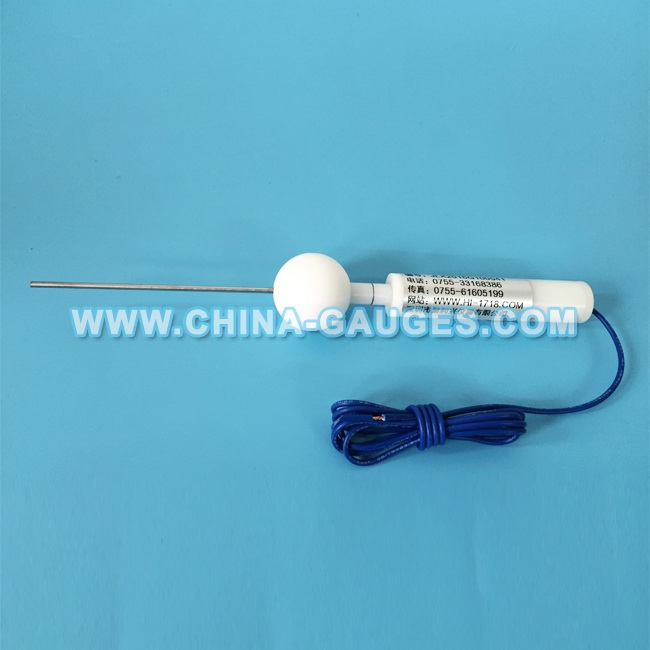

IEC60529 IP3X Test Probe Pin
Basic Introduction:
1, According to: IEC61032:1997 / IEC60529:2001 and UL etc.
2, IEC60529 IP3X Test Probe Pin is the necessary tool to proceed protecting electric shock test of domestic and similar electrical appliances.


Technical parameters:
1, Test Probe Length: 100 mm
2, Test Probe Diameter: 2,5 mm
3, Dam- sphere Diameter: 35 mm
4, Handle Diameter: 10 mm
5, Handle Length: 100 mm

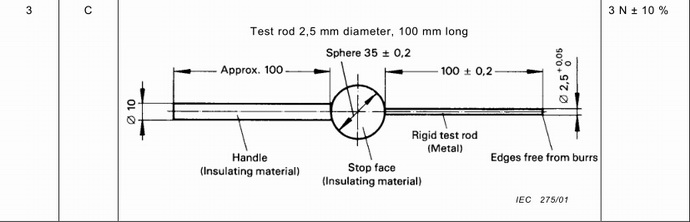

6, According to IEC61032 figure 3 (the Test probe C) table 6, IEC 60529 the first characteristic digital 3.


Application:
1, Standard test refers to the joint part can't touch the live parts or close to the hazardous parts, and 35mm circular baffle cannot enter .
2, In the test requirement for preventing from approaching to the hazardous parts, Test Probe C need to exert a 3±0,3N force.


Purpose:
This probe is aiming at verifying the basic protection against approaching to hazardous parts.

Note: For the without force products,please use with the dynamometer.
