  • IEC60068 2J Spring Hammer Test Device

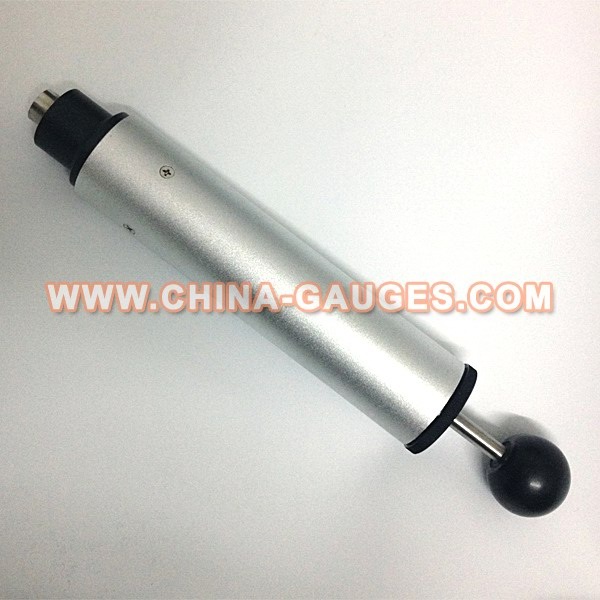

IEC60068 2J Spring Hammer Test Device

1.Introduction:

(1) IEC60068-2-75 Spring Impact Hammer Test Apparatus is strictly designed according to IEC60068-2-75 standard etc.

(2)After applying the impact with the hammer, the products is examined with accessibility probes to determine

access to chock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.


2.Application:

Adjust the impact severity by rotating the knurled cap until the desired energy-value is displayed. Pull the knob slowly out of the device until it locks in place.

If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling-force declines. Hold the device horizontally at it’s housing tube and press the (black) release cone to the specimens plane of impact.

The strike is automatically released when the release force threshold is reached

Impact energy :2 J

Allowable error: ±10%
The weight of impact element: 500g±5g
The power: <10N
The whole weight: 1500g±10g
