  • 125mm Diameter Standard Test Finger Electrical Safety Test Probe of IEC 60335-2-14

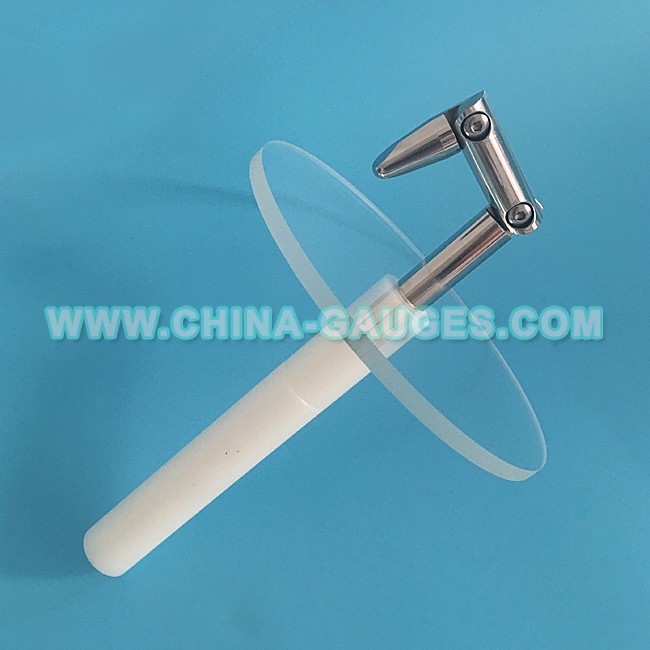

125mm Diameter Standard Test Finger Electrical Safety Test Probe of IEC 60335-2-14

Test Finger Probe with Diameter 125 mm Circular Stop Face of IEC 60335-2-14 20.2

The test probe is carried out with a test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm instead of the non-circular face, the distance between the tip of the test finger and the stop face being 100 mm.




Specification:

Test finger length
100 mm
Curved length
30 / 30 / 40 mm
Material
stainless steel and nylon
Dam-board Diameter
125mm
Reference
IEC 60335-2-14 20.2
