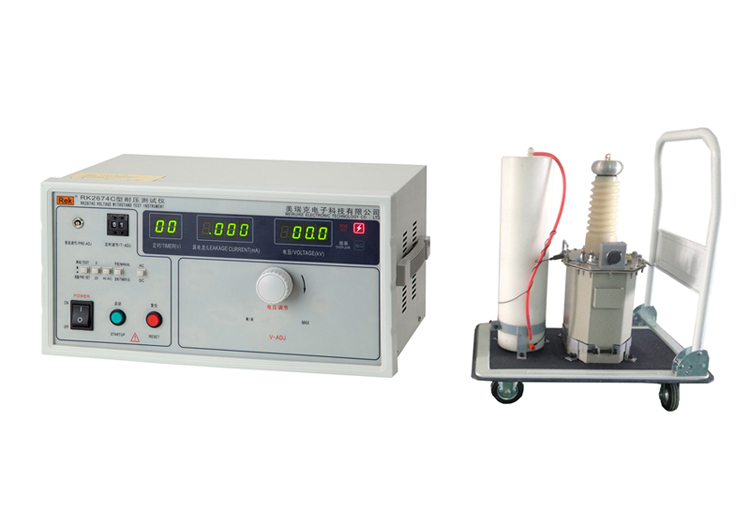

0~25kv/50kv AC 0-2/20/40mA / DC 0-2/10mA Hipot Tester

Technical Parameters:

Model LX-2674C
Output Voltage 0~25kv/50kv
Voltage Resoulation 100V
Voltage Accuracy ±5%
Leakage Current (AC) 0-2/20/40mA
Leakage Current (DC) 0-2/10mA
Current Resolution 0~2mA:1μA
2~20mA:10μA
Current Accuracy ±5%
Test time 0~99 s ,manual control
Max Outpower 1000VA
Transformer Capacity 2000VA
Display Models LED
Input Voltage Request 220V±10%,50Hz±5%
Working Environment 0℃~40℃,≤85%RH
